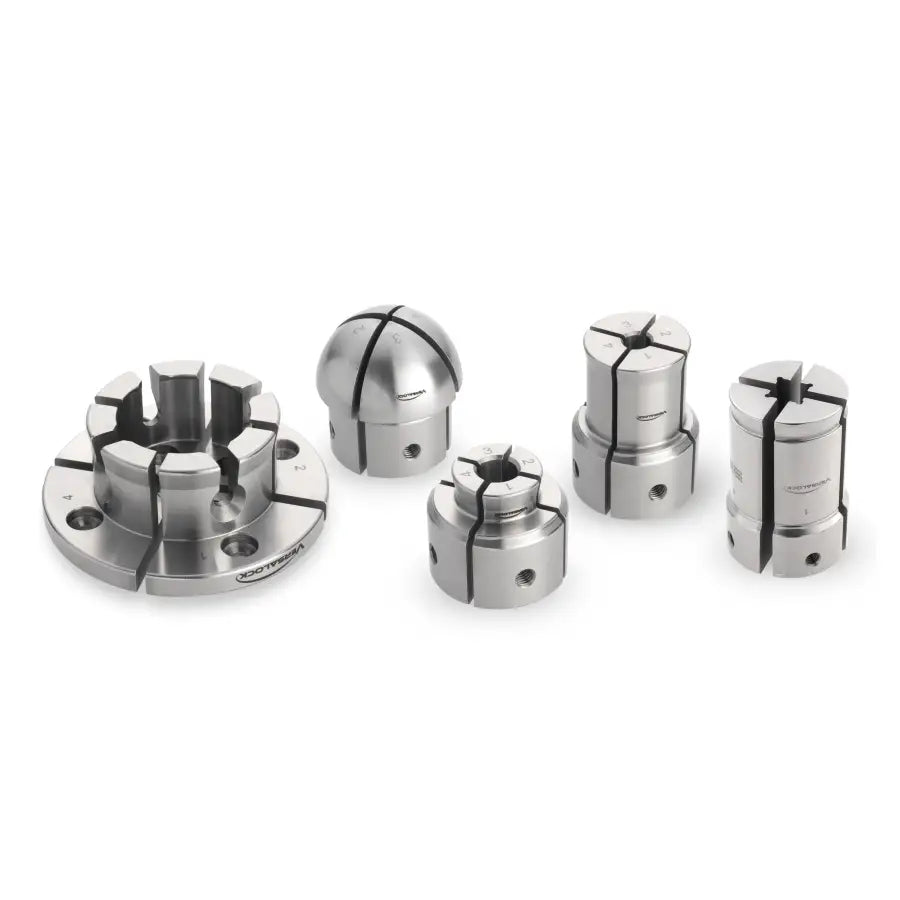

Versalock 5 Piece Upgrade Set (Includes 62690,62696,63697,62698,62689)

VersaLock 5 Piece Upgrade Jaw & Insert Package

The Versalock Insert Package contains 4 sets of VersaLock jaw inserts and the 50mm dovetail modular jaws:

• 62690 VersaLock 50 mm Dovetail Modular Jaws
• 62696 VersaLock 35mm Long Dovetail Jaw Inserts
• 62697 VersaLock 28mm Short Dovetail Jaw Inserts
• 62698 VersaLock Dome Jaw Inserts
• 62689 VersaLock Small Project Jaw Inserts

VersaLock 50 mm Dovetail Modular Jaws

These versatile Modular jaws feature dovetail profiles for internal and external gripping, making them ideal for general purpose bowl and spigot work. They are also the modular carrier jaws for the full range of quick-change VersaLock insert jaws, allowing you to add even more versatility to your turning with the speed and ease the VersaLock range offers.

• Expansion: 52 – 72mm
• Contraction spigot: 42 – 61mm
• Contraction square: 30 – 51mm

VersaLock 35mm Long Dovetail Jaw Inserts

Ideal for smaller spigots and recesses, these Long Dovetail Jaw Inserts are incredibly versatile. The length of the jaws offers increased holding power on spigots and gives good access to the rear of workpieces when used in expansion mode. The 10 mm central bore is designed for holding small spigots, making them the ideal jaws for turning drawer handles, finials and other similar-sized projects.

• Expansion: 33 - 53mm
• Contraction spigot: 7 - 27mm
• Contraction square: 6 – 19mm

VersaLock Small Project Jaw Inserts

These jaws are ideal for turning small, intricate items. Whether you’re crafting custom pens, tealight holders, or lidded boxes, these inserts deliver the rock-solid holding and great front to back tool access.

VersaLock 28mm Short Dovetail Jaw Inserts

These Short Dovetail Jaw Inserts are ideal for use with small workpieces, such as miniature boxes and the 13 mm central bore gives excellent support for small spigots such as those needed for decorative finials and similar projects.

• Expansion: 25 -45mm
• Contraction spigot: 10 - 30mm
• Contraction square: 7 - 21mm

VersaLock Dome Jaw Inserts

These VersaLock Dome Jaw Inserts are specifically designed to hold the smallest, most fragile work pieces, allowing you to get very close to support thin work as safely as possible. They also allow good access to work close to the base of a workpiece without the tool fouling on the jaws.

For maximum support always ensure the workpiece features a spigot long enough to be supported along the full length of the jaws’ internal surfaces.

• Contraction spigot: 0 - 18mm
• Contraction square: 0 -12mm

VersaLock Modular Jaw System: Revolutionising Woodturning with Speed, Safety and Versatility

The VersaLock modular jaw system is the latest innovation in woodturning technology from Record Power, offering a groundbreaking approach to chuck jaws that combines speed, safety and unmatched versatility.

Protected by patent GB 2608602 with patents pending in Europe, USA and China, VersaLock sets a new standard in woodturning by allowing quick and secure jaw changes without the hassle of lost screws. Whether you're an experienced woodturner or just starting out, VersaLock transforms your workflow, letting you focus on creating with precision and confidence.

The Record Power VersaLock jaw system, comprising 50 mm modular base jaws and 3 sets of inserts, is designed to offer the benefits of the most used jaws on a chuck whilst also providing many of the functions of a mini chuck.

The VersaLock system will be expanded in the future with an even wider range of applications possible from additional VersaLock base jaws and inserts so that most applications can be quickly and safely accomplished with just a handful of base jaws.
