Proxxon PD 250/E Metal Lathe
Description
Description

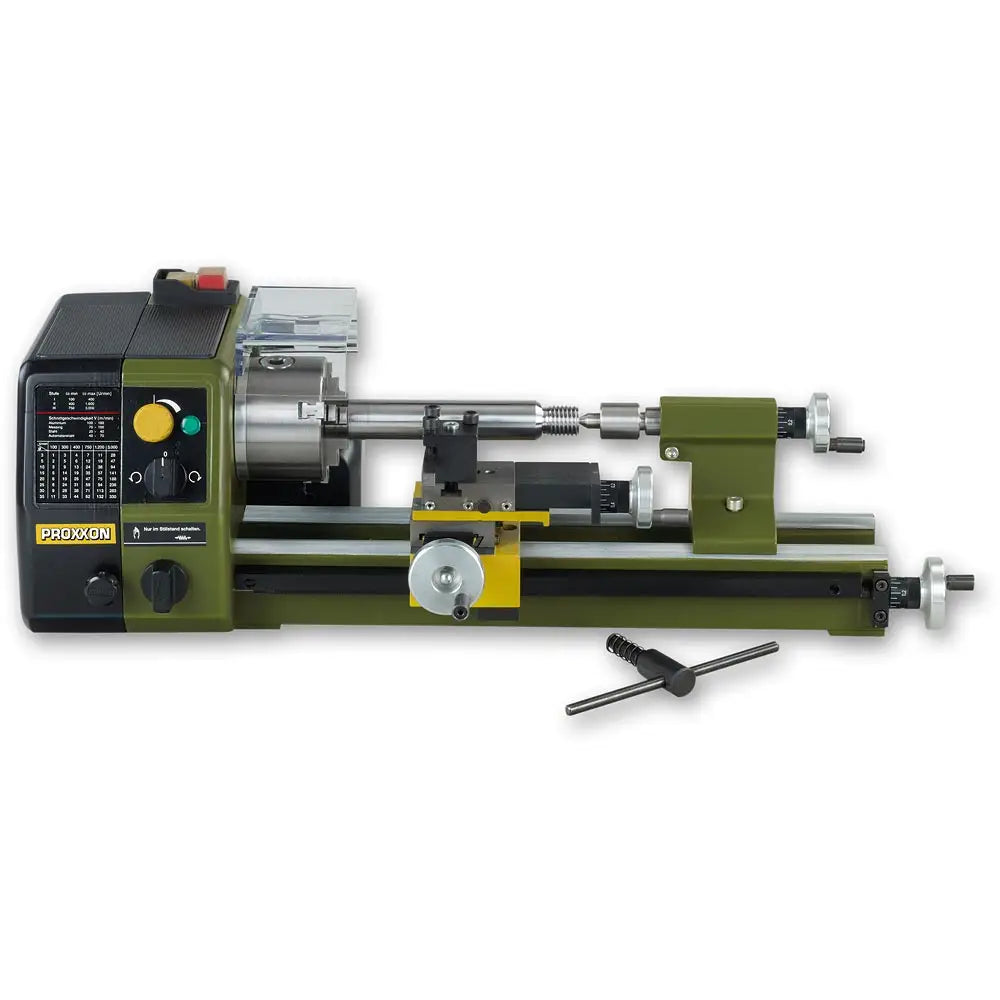

Proxxon PD 250/E Metal Lathe
The Proxxon PD 250/E is a precision lathe for face, longitudinal and taper turning, and thread-cutting, capable of machining steel, brass, aluminium, and plastic. Its cast iron machine bed with a wide-legged prismatic guide gives vibration-free operation even under load, making it a serious step up for hobbyists and model engineers ready to move into metalworking.
Key Features
- Cast iron machine bed with covered lead spindle for stable, vibration-free work
- Die-cast aluminium headstock with precision-mounted main spindle (run-out without chuck 1/100mm)
- Die-cast aluminium tailstock with 18mm retractable sleeve and millimetre scale
- Quiet DC motor with 3-stage belt drive plus continuously adjustable speed control, clockwise/anticlockwise rotation
- High quality 3-jaw chuck to DIN 8386 Class 1, capacity 2-75mm via reversing jaws, with safety shutdown guard
- Built-in thread-cutting device with change gears for the most common metric pitches
- Rear mounting flange for fitting the PF 230 mill/drill head, converting the lathe into a full machining centre
Technical Specifications
- Centre distance: 250mm
- Swing: 70mm
- Height over cross slide: 43mm
- Spindle speeds: 300-900 and 3,000rpm (3-stage belt), continuously adjustable to 100-300 or 1,000rpm
- Chuck capacity: 2-75mm (reversing jaws)
- Power supply: 230V, 50/60Hz
- Dimensions: L560 x W270 x H170mm
- Weight: approx. 12kg
Complete the setup with the PD250 Quick Change Tool Set, PD250 ER20 Collet Set, or the 4-Jaw Independent Chuck. Browse the full Proxxon collection for more lathes and machining accessories.
