Proxxon PD 400 Precision Lathe
Description
Description

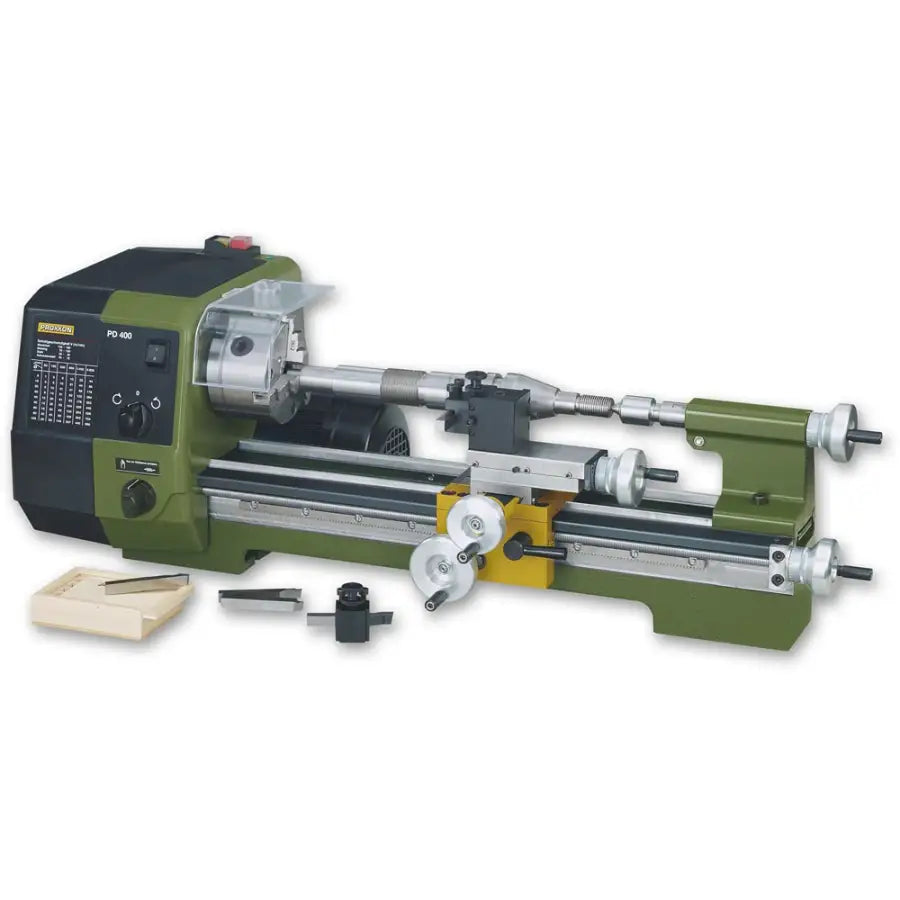

Proxxon PD 400 Precision Lathe
The PD 400 is the heart of the Proxxon precision metal-turning system, built to DIN 8606 tolerances in Germany. With a 400mm centre distance and 85mm swing, it's designed for face turning, longitudinal turning, taper turning and thread cutting in steel, brass, aluminium and plastic — and with the system's accessory range it can also drill, mill and slot.
Key Features
- Cross-braced cast iron bed with wide-legged, prism slides for vibration-free work
- Die-cast aluminium headstock with MK3 spindle bore (20.5mm) and adjustable taper roller bearings
- 3-jaw precision lathe chuck to DIN 6386 (concentricity tolerance 0.04mm) with safety guard and shutdown
- Quick-change tool post with two holders, height-adjustable, for 10 x 10mm turning tools
- Built-in thread cutting device covering 19 metric pitches (0.2–3mm) and inch threads 10–48TPI
- Zero-adjustable aluminium handwheels for precise cross slide, top slide and tailstock control
Technical Specifications
- 230V, 50/60Hz, motor rated input 870W (output 550W)
- Spindle speeds: 80–330–1,400rpm (stage 1) and 160–660–2,800rpm (stage 2)
- Dimensions L900 x W400 x H300mm, weight approx. 45kg
- Item no. 24 400
Looking for CNC control? The same machine is also available as the PD 400/CNC-ready, and can be paired with the CU 4 CNC Control Unit. Browse the full Proxxon collection for chucks, tool sets and other PD 400 accessories.
