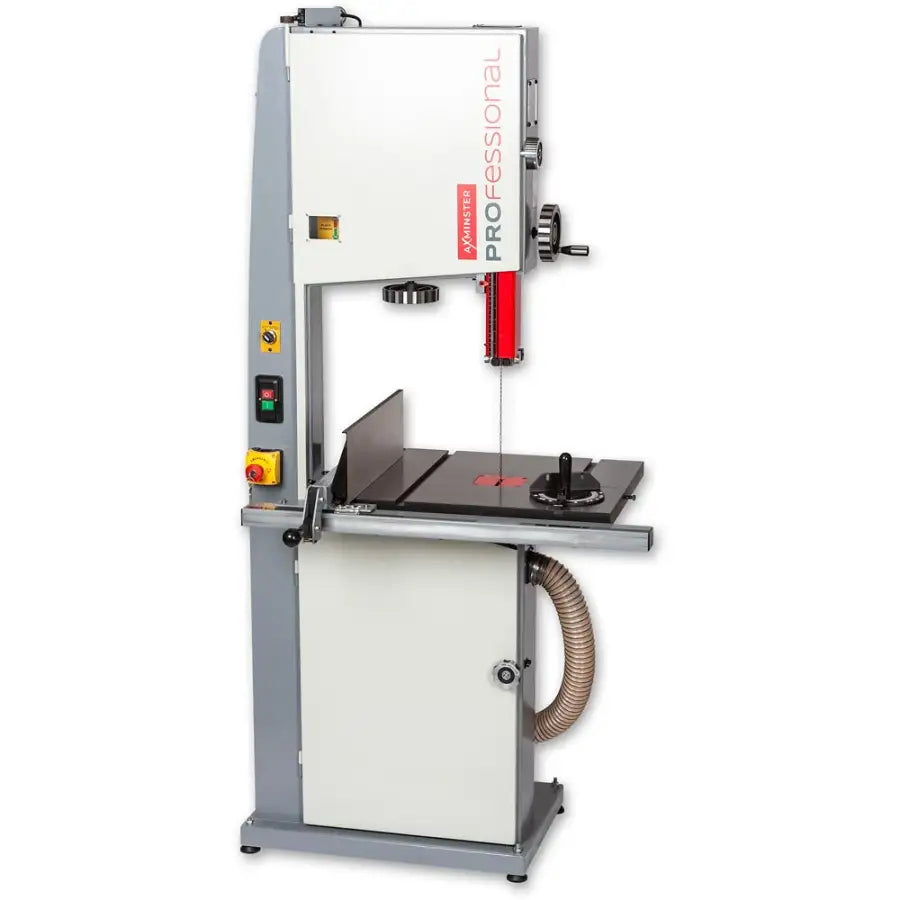

Axminster Professional AP3600B Bandsaw - 230V
VAT included. · P&P calculated at checkout.
Available on back order
Pickup available at Greenvill Crafts Harrogate for in stock items · Usually ready within 24 hours
Description
Axminster Professional AP3600B Bandsaw - 230V
The AP3600B is a modern and capable bandsaw, offering robust build quality alongside impressive cutting power.
Key Features
- 360 mm depth of cut; 420 mm width of cut
- Large and supportive table with cast iron trunnion
- Powerful 2.5kW braked motor
- Hi/Lo easy glide rip fence
- Quick release blade tension lever
In Detail
With a generous 360 mm depth and 420 mm width of cut possible, it also features a large 485 mm x 560 mm cast iron table. The table is engineered with a double trunnion table support, making it ideal for supporting large pieces of timber with ease. The powerful 2.5kW motor means you can easily handle big cuts, as required in a demanding workshop.
The bandsaw is supported by a solid steel tubular frame which limits vibration. It comes supplied with a rigid T-style, easy glide Hi / Lo rip fence for highly accurate cuts. The cast iron blade wheels are fully balanced, reducing vibration further as well as reducing any fatigue from use.
You can rest assured that this machine meets all safety requirements: it features a key switch for extra safety when away from the machine, as well as an emergency stop switch. Dual dust extraction ports provide efficient methods of dust extraction to keep your workshop clean and dust free.
Set up is a breeze; premium blade guides and a quick release blade tension lever make changing or adjusting your blades quick and easy. With levelling feet, you can get your bandsaw perfectly aligned in the workshop. Heavy duty metal handwheels mean your machine will remain in service longer.
Supplied with a 3/4" x 3 TPI blade.
N.B. This Machine requires a 16amp supply and it's recommended that a C Type breaker is used, if you are unsure please contact a qualified electrician.
Specifications
| Bandsaw Blade Length | 3,600 mm (141.3/4") |
|---|---|
| Bandsaw Wheel Diameter | 430 mm |
| Blade Speed | 870 m/min |
| Blade Width Min\Max | 6 mm to 25 mm |
| Dust Extraction Outlet | 100 mm & 63 mm |
| EAN Barcode | 5052511132379 |
| Max Cutting Height | 360 mm |
| Max Width of Cut | 420 mm |
| Max Width of Cut with Fence | 335 mm |
| Min Extraction Airflow Required | 1,200 m³/hr |
| Nett Weight | 158 kg |
| Overall L x W x H | 970 mm x 960 mm x 1,915 mm |
| Plug Fitted | UK 16A Plug |
| Power | 2.5 kW |
| Rating | Frequent Use |
| Sound Power Level LwA [Uncertainty K] | 76.2 dB(A) |
| Sound Pressure Level LpA [Uncertainty K] | 72.3 dB(A) |
| T Slot Size | 19 mm |
| Table Height | 895 mm |
| Table Size | 485 mm x 560 mm |
| Table Tilt | 0° - 45° |
| Voltage | 230 V |
Video
Product info
| Brand | Axminster |
|---|---|
| SKU | 109967 |
| Weight | 158.0 kg |
Technical specifications
| Mounting type | Floor-mounted |
|---|
