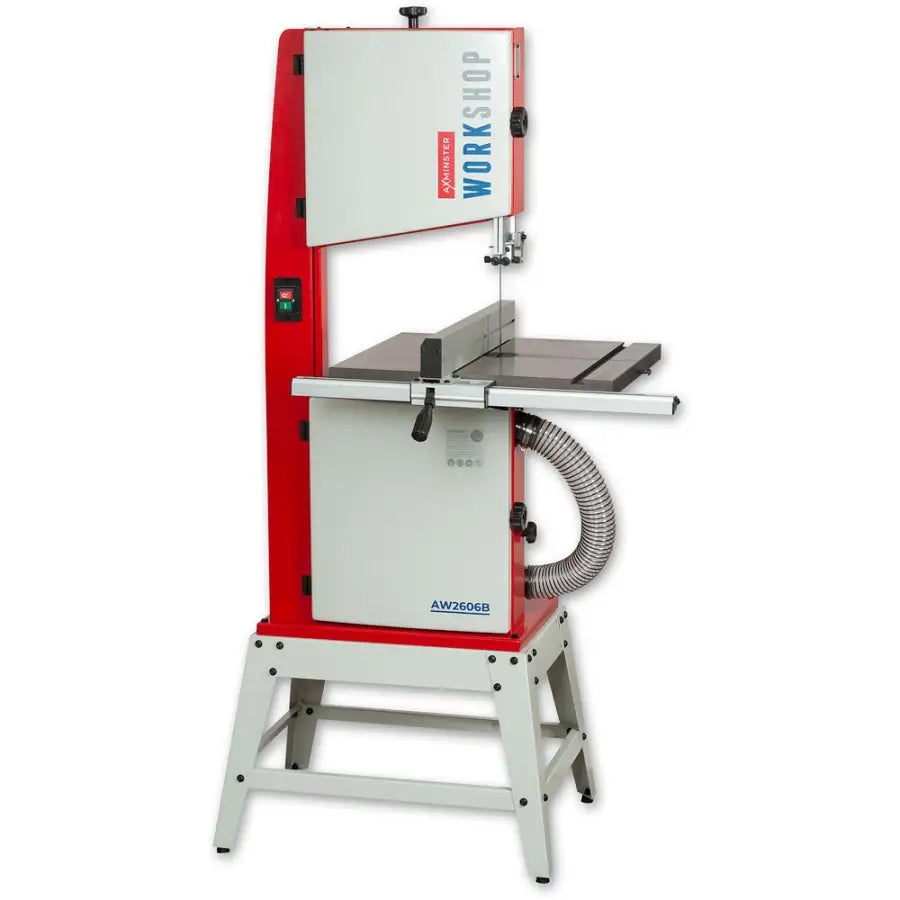

Axminster Workshop AW2606B Bandsaw 230V
VAT included. · P&P calculated at checkout.
Available on back order
Pickup available at Greenvill Crafts Harrogate for in stock items · Usually ready within 24 hours
Description
Axminster Workshop AW2606B Bandsaw 230V
Purchasing the AW2606B puts a powerful large capacity bandsaw in your workshop. A machine on which you can depend on to accurately slice thin veneers or resaw large chunks of timber.
Key Features
- Resaw thick timber or cut thin veneers
- Large depth of cut: 200mm with 360mm width of cut
- Rigid, quick locking rip fence, cast iron table
In Detail
A powerful, quiet and reliable alloy bodied induction motor drives the bandsaw through a multi V-belt . A choice of two blade speeds, gives you the right speed for any task.
The AW2606B has a strong fabricated steel frame with a cast iron table and mountings. The generously sized, cast iron table has a standard 19mm mitre fence slot. The rip fence cam locks solidly to the front rail. Twin scales allow the fence to be used either side of the blade.
Bearing guides offer excellent support for increased accuracy. A rack and pinion system provides easy adjustment of the upper blade guide.
The two dust extraction points are interconnected and joined to a single 100mm outlet for coupling to a suitable extractor. Supplied with a splayed leg steel stand with rubber feet and a UK made general purpose 1/2" x 4tpi blade.
Specifications
| Bandsaw Blade Length | 2,606 mm (102.3/4") |
|---|---|
| Bandsaw Wheel Diameter | 370 mm |
| Blade Speed | 600 & 840 m/min |
| Blade Width Min\Max | 6 mm to 19 mm |
| Dust Extraction Outlet | 100 mm |
| EAN Barcode | 5052511126309 |
| Max Cutting Height | 200 mm |
| Max Width of Cut | 360 mm |
| Max Width of Cut with Fence | 260 mm |
| Min Extraction Airflow Required | 1,000 m³/hr |
| Model | AW2606B |
| Nett Weight | 85 kg |
| Overall L x W x H | 980 mm x 760 mm x 1,740 mm |
| Plug Fitted | UK 3 pin plug |
| Power | 1.1 kW |
| Rating | Regular Use |
| Sound Power Level LwA [Uncertainty K] | 98.5 dB(A) [3.0 dB] |
| Sound Pressure Level LpA [Uncertainty K] | 84 dB(A) [3.0 dB] |
| T Slot Size | 19 mm x 9.5 mm (3/4" x 3/8") |
| Table Height | 1,060 mm |
| Table Height on Stand | N/A |
| Table Size | 485 mm x 550 mm |
| Table Tilt | 0° - 45° |
| Voltage | 230 V |
Video
Product info
| Brand | Axminster |
|---|---|
| Type | bandsaw |
| SKU | 108000 |
| Weight | 90.0 kg |
Technical specifications
| Mounting type | Floor-mounted |
|---|
