Description

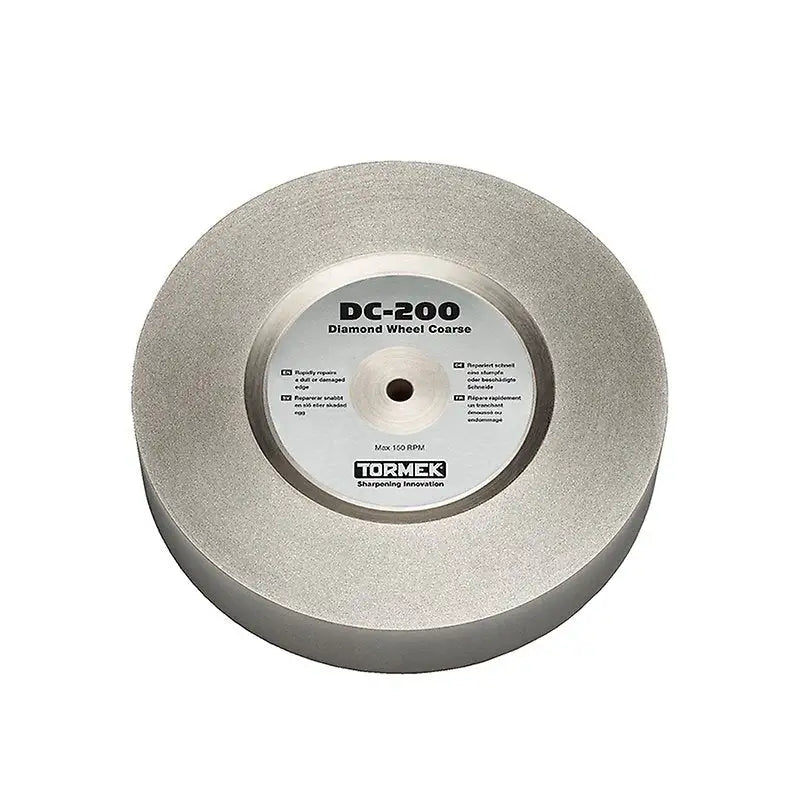

DC-200 Diamond Wheel Coarse

Diamond grinding wheel for Tormek T-4. The DC-200 Diamond Wheel Coarse is designed to provide effective sharpening and rapid repair of a dull or damaged edge. The diamond wheel has a grit size of 360 for fast steel removal and is particularly useful for tool shaping.

Why DC-200 Diamond Wheel Coarse?

  • Diamond grinding wheel for Tormek T-4.
  • Fast steel removal to repair or reshape edges.
  • Constant shape, always maintains the same diameter.
  • Sharpens all types of steel and ceramic.
  • Allows sharpening on the side of the grinding wheel to get a completely flat bevel.
  • Exceptional durability with diamond, the world's hardest abrasive.

A Grinding Wheel for All Materials

With this diamond wheel, you can sharpen nearly any type of material, including steel, ceramic and carbide. The DC-200 Diamond Wheel Coarse fits the Tormek T-4 Original, Tormek T-4 Bushcraft, Tormek T-3 and earlier models with a 200 mm diameter grinding wheel.

The DC-200 Diamond Wheel Coarse does not leave a fine finish, but should be followed by sharpening with a more fine-grained grinding wheel, such as the DF-200 Diamond Wheel Fine or the DE-200 Diamond Wheel Extra Fine.

Simplifies Repeat Sharpening

All of Tormek's diamond grinding wheels have exceptional durability with a constant removal rate and shape, which means that they always stay round and flat with a full-size diameter. Users who often sharpen the same tool benefit greatly from this, as it simplifies both setting up and sharpening.

Get a Completely Flat Bevel

The constant shape makes it possible to grind either on the side of the wheel or on its upper surface. Side grinding is perfect for smaller tools such as knives, chisels, carving gouges and v-tools, giving an edge with a completely flat bevel instead of a slight hollow grind.

For sharpening on the side of the diamond wheels, we recommend using the MB-102 Multi Base together with the jig designed for your specific tool. Both the base and the jigs give you support and control throughout the sharpening process.

Rust Protection

All diamond wheels are supplied with 150 ml of ACC-150 Anti-Corrosion Concentrate. Always add the concentrate to the water when sharpening to prevent rust on the grinding wheel (approx. 10 ml to 250 ml water, ~4%). We recommend always using water when sharpening with diamond grinding wheels if possible, as it both prolongs the service life of the wheel and provides a smoother sharpening surface. You can also sharpen without water.

Note: Apply only very low pressure when sharpening on diamond grinding wheels – let the diamonds do the work. Too high pressure can damage the wheel beyond repair.

Specs and details

Diameter: 200 mm (7 7/8")
Width: 40 mm (1 5/8")
Weight: Freight weight 3.09 kg (6.82 lb)
Colour: Silver
Material: Machined steel core coated with diamond
Grit: 360
Warranty: 2-year warranty

Product info
BrandTormek
TypeSharpening accessories
SKUTOR-DC-200
Weight3.25 kg
