Record Power DML305 Woodturning Lathe
VAT included. · Shipping calculated at checkout.
Available on back order
Pickup available at Greenvill Crafts Harrogate for in stock items · Usually ready in 24 hours
Description

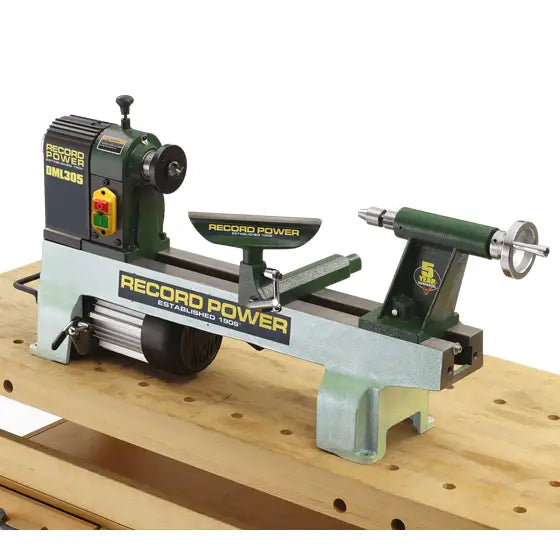

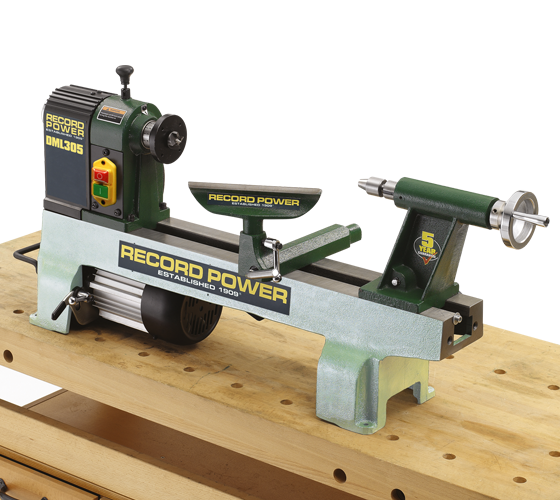

Record Power DML305 Woodturning Lathe
The Record Power DML305 Woodturning Lathe is cast iron and represents a new benchmark in high quality midi lathes and is perfect for the user with minimal space or as a second lathe for demonstrations and shows.
The bed is made from finely ground cast iron for weight and rigidity and fitted with cam locking tool rests that clamp easily and solidly to the bed with one handed operation.
M33 Cast Iron 6 Speed Midi Lathe
The machine has 393 mm between centres as standard and an optional bed extension can be added to increase this capacity.
The swing over the bed is 305 mm and the motor is 1/2 hp, providing plenty of power for the capacities of these machines. The spindle has an M33 thread to ensure a wide range of Record Power accessories can be fitted.
This Record Power DML305 Woodturning Lathe is extremely well finished with polished metal handles, spindle locks with indexing and graduated markings on the tailstock barrels.
Many of these features are normally only found on expensive professional lathes.

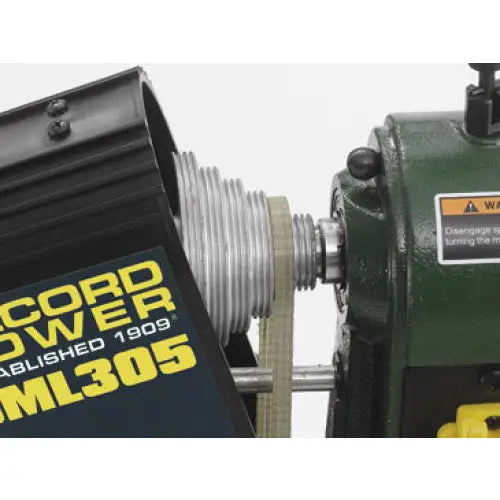

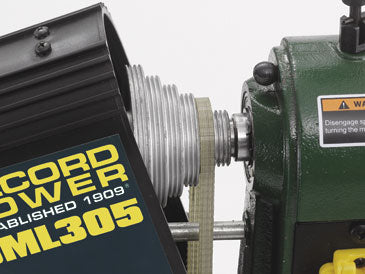

Headstock
Easily accessible pulley system makes changing speed an easy task and the Headstock also features indexing.

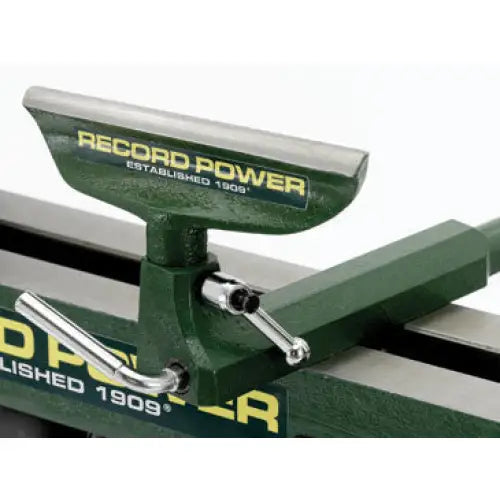

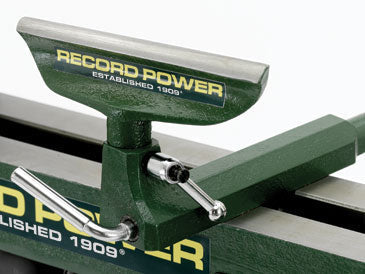

Cam Lock
Features cam lock tool rest and tailstock.

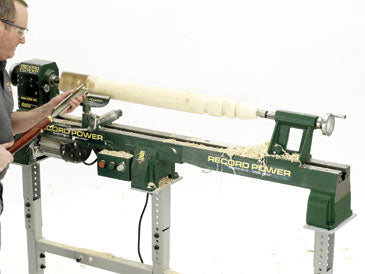

Capacities

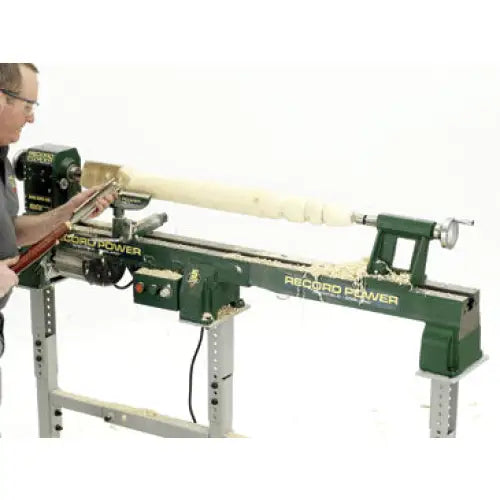

Large capacities between centres can be accommodated with optional bed extensions.

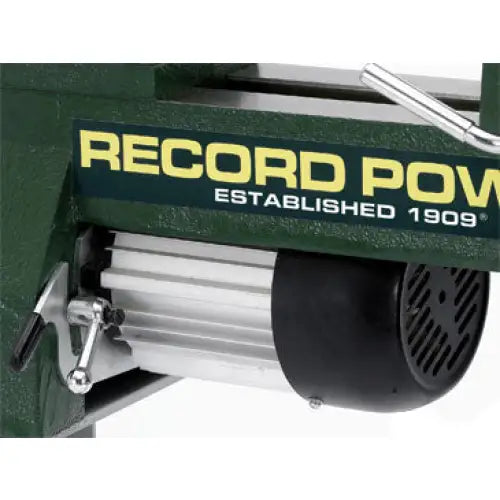

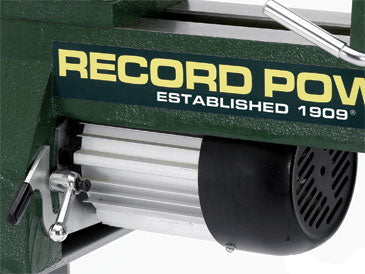

The 1/2 hp motor give quiet and smooth operation and have plenty of power for the capacities of this machine.

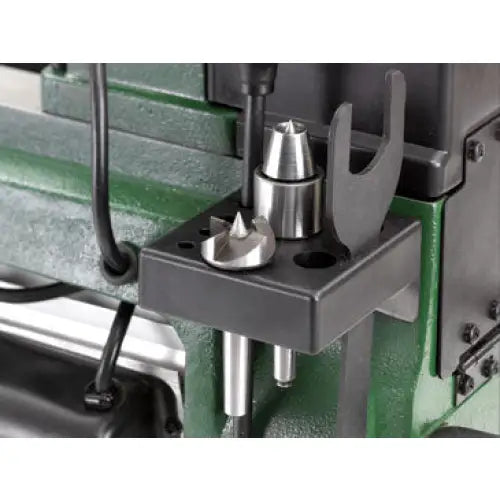

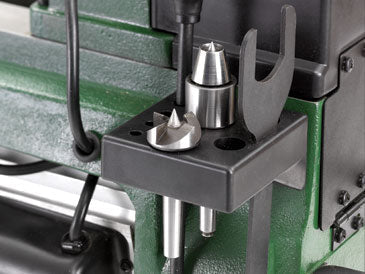

Tool Caddy
A handy tool caddy is supplied as standard with the Record Power DML305 Woodturning Lathe
Accuracy

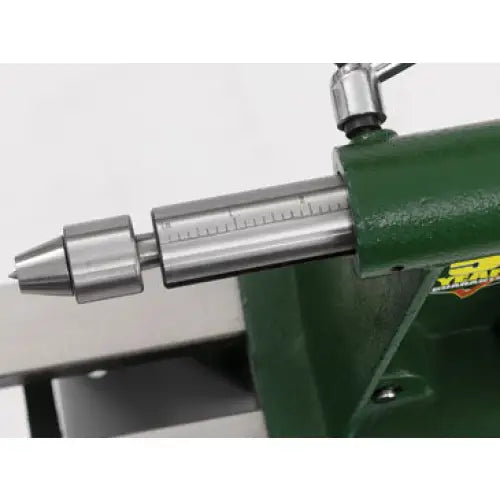

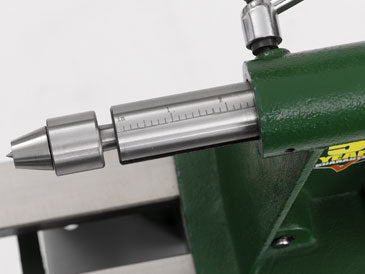

The spindle lock features graduated markings on the tailstock barrel.
Product info
| Brand | Record Power |
|---|---|
| Type | Lathes |
| SKU | DML305-M33 |
| Weight | 39.0 kg |
Technical specifications
| Weight | 39 |
|---|---|
| Lathe size | W870 x D200 x H455 mm |
| Maximum between centres | 393 mm (15") |
| Maximum swing over bed | 305 mm (12") |
| Maximum bowl diameter | 305 mm (12") |
| Morse taper | 2MT |
| Spindle thread | M33 x 3.5 |
| Motor | 500 |
| Cast iron bed | Yes |
| Extendable bed length | Yes |
| Spindle lock | Yes |
| Integral legstand | Yes |
| Bench mountable | Yes |
| Optional legs/stand | Yes |
| Optional bed extension | Yes |
| Optional outrigger | No |
