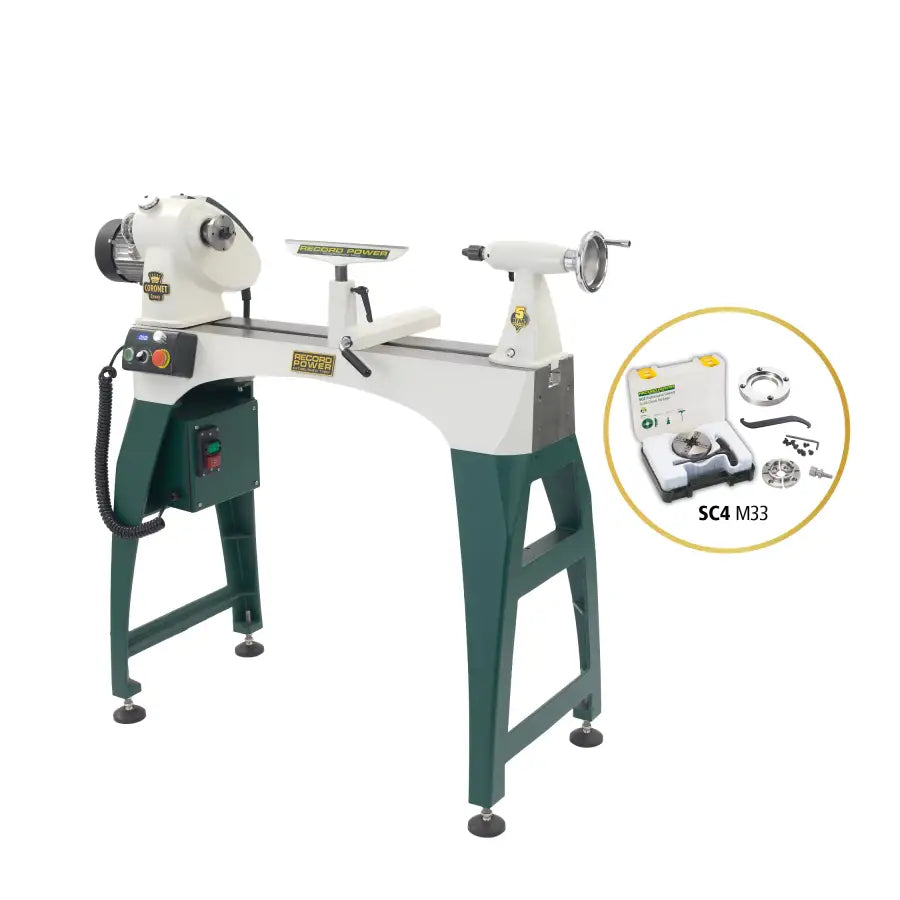

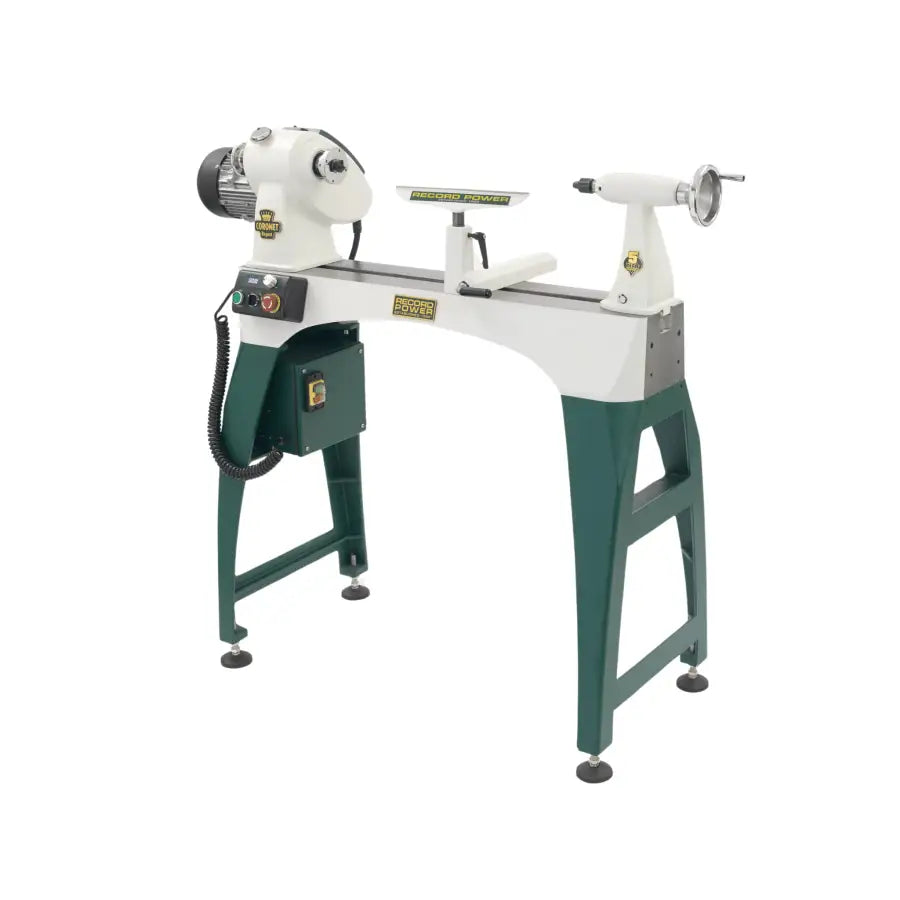

Record Power Coronet Envoy Woodturning Lathe with SC4 Chuck Package

Record Power Coronet Envoy & SC4 Chuck

Part of the exclusive range of Coronet lathes from Record Power, the Envoy is perfect for the woodturner who regularly needs the power, stability and capacities necessary for large scale work. Designed as a natural progression from the Coronet Herald, it is supported by large and heavy integral cast iron legs to give ample protection from vibration while turning out of balance timbers. The overall heavy-duty construction of the machine, along with the finely engineered and machined components make this lathe a pleasure to use. The Envoy offers unrivalled value-for-money in its class without compromising capacity or features. It offers the benefits of electronic variable speed, a rotating and sliding headstock, reverse function and solid cast iron build throughout, yet at a cost more commonly associated with either much smaller or less well-specified lathes.

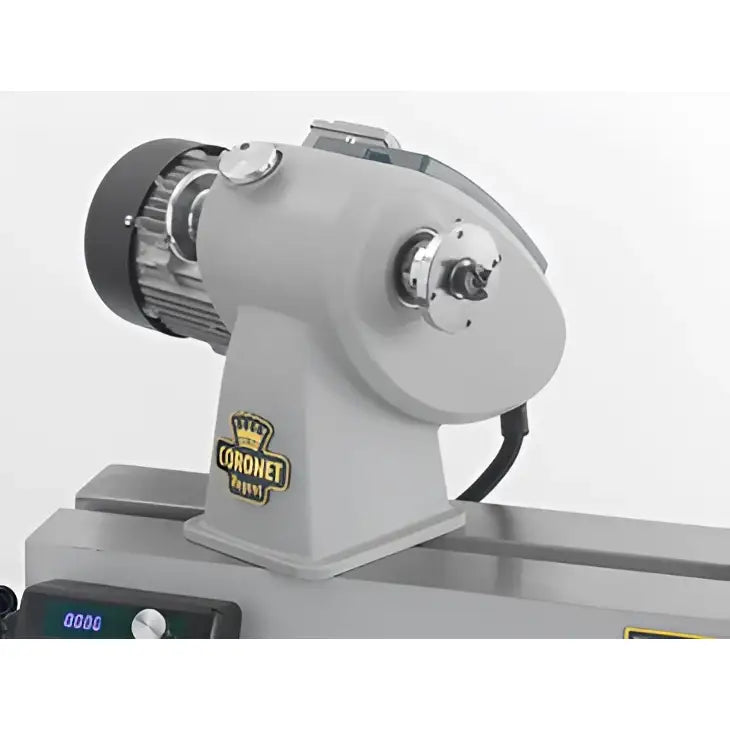

Rotating and Sliding Headstock

Unlike many cast bed lathes, the headstock of the Envoy can be rotated 360º, optimising access and also making it ideal for left-handed turners. A bearing system beneath the headstock allows it to be locked at 90º to the lathe bed and it can also be moved along the bed if required.

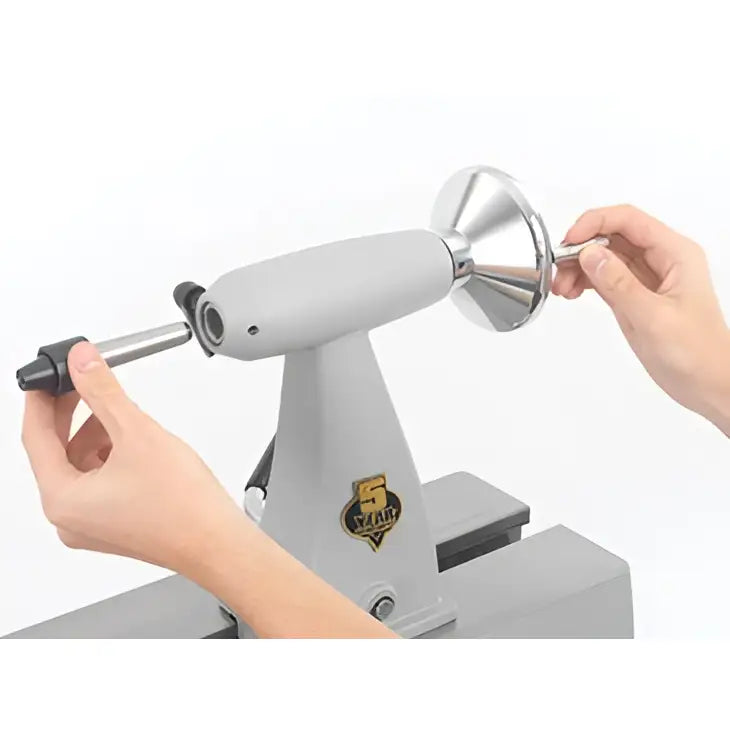

Self-Ejecting Tailstock

The self-ejecting tailstock allows for accessories to be easily and quickly removed without the need for a knockout bar. It accepts 2 Morse taper accessories, providing excellent strength and solidity.

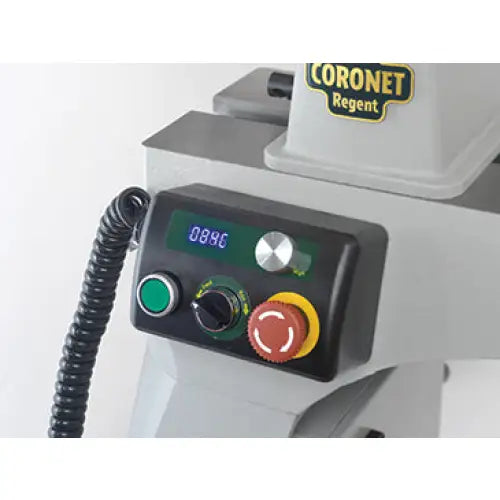

Repositionable Control Panel

The control panel of the Envoy can be placed anywhere on the lathe and is secured from the rear with a strong magnet. Ideal for when turning large timbers which can limit access to the headstock-mounted fixed control panels found on many lathes.

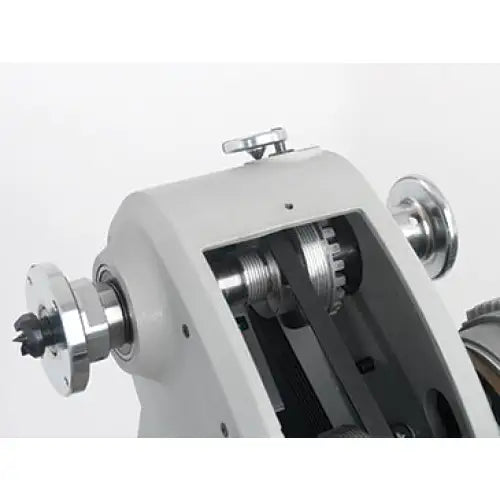

3-Step Pulley

A 3-step pulley is provided for maximum versatility. For most turning the middle pulley is ideal and provides good torque but if you need maximum torque for heavy cuts or low speed work, then the bottom pulley has immense torque capability and the top pulley gives access to the highest speeds. For ease of use the drive belt position can be seen through the inspection window of the headstock.

Record Power SC4 Chuck

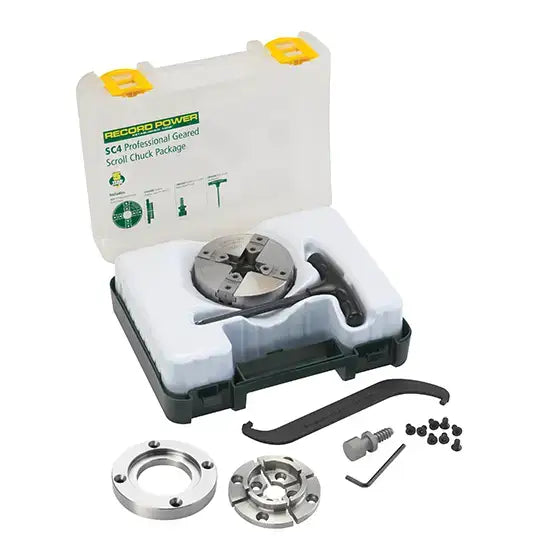

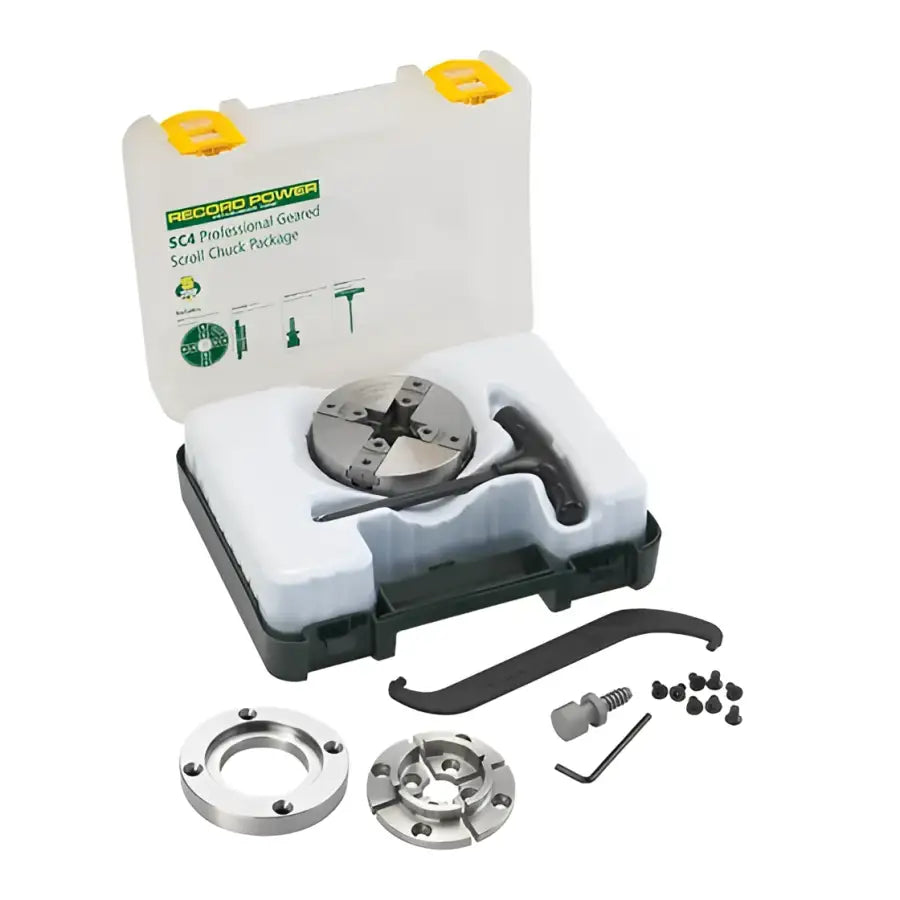

Record Power SC4 Professional Geared Scroll Chuck Package with 3 1/2" Faceplate - M33 x 3.5 Direct Thread

Perfect for the demanding woodturner, being capable of holding large work pieces yet possessing the precision and compactness to handle more delicate work. This model features an enclosed back with full indexing plate and has pinions driven by a long ball ended hex key to make access easy, even when large work pieces are mounted.

This chuck features an M33 x 3.5 direct thread, making it compatible with the full range of Record Power lathes as well as many others.

Supplied complete with deep wood screw, standard jaws and 87 mm faceplate, this package offers professional performance at an exceptionally affordable price.

Jaw Fixing System

The SC3 and SC4 feature jaw fixings which not only fit the Record Power series of Jaws but are also fully compatible with Nova and Robert Sorby brand jaws.

Precision Engineered Gears

Super Geared True-Lock™ technology ensures high levels of accuracy to provide smooth and solid operation. (SC3 key shown).

Deep Wood Screw

The SC3 and SC4 are supplied with the indispensable Record Power deep wood screw. Ideal for mounting bowl blanks, this screw is held in the jaws of the chuck, giving exceptional holding power. This means a separate wood screw chuck need not be used and the chuck can stay on the lathe, saving time and effort.

High Tensile Strength

The chuck bodies are made from high tensile steel for superior strength and performance.

Heavy-Duty Jaw Slides

The improved and enlarged jaw slides give unsurpassed holding power and load bearing ability. They are made from high tensile steel, reinforced with nickel and copper and heat-treated to ensure superior strength.

Single Handed Operation

The SC3 and SC4 are operated single-handedly using a key, leaving a hand free to mount the work. The SC4 key features a ball hex wrench design for multi-directional operation and ease of access. (SC4 key shown).

Sealed Backing Plate with Full Indexing

The SC4 features a strong backing plate to protect the gear mechanism from dust. It also features 72-point indexing around the full circumference.

Package includes:

• 50 mm Standard Jaws
• 87mm (3.5") Faceplate Ring
• Universal Wrench
• Hex Key For SC4
• Deep Wood Screw (Right Hand Thread)
• SC3 & SC4 Chucks Fastening Kit

Size: W1435 x D540 x H1210 mm

Weight (KG): 140
