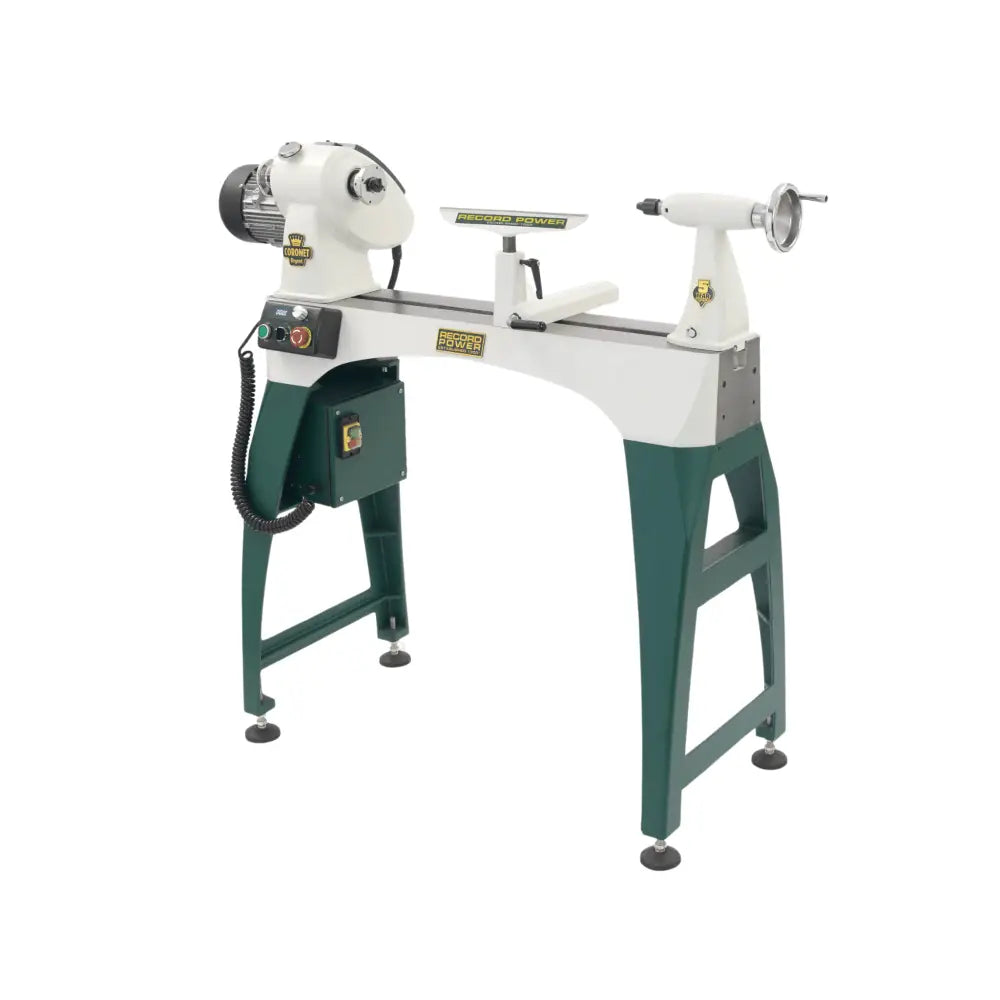

Record Power Coronet Envoy Woodturning Lathe
Part of the exclusive range of Coronet lathes from Record Power, the Envoy is perfect for the woodturner who regularly needs the power, stability and capacities necessary for large scale work. Designed as a natural progression from the Coronet Herald, it is supported by large and heavy integral cast iron legs to give ample protection from vibration while turning out of balance timbers. The overall heavy-duty construction of the machine, along with the finely engineered and machined components make this lathe a pleasure to use. The Envoy offers unrivalled value-for-money in its class without compromising capacity or features. It offers the benefits of electronic variable speed, a rotating and sliding headstock, reverse function and solid cast iron build throughout, yet at a cost more commonly associated with either much smaller or less well-specified lathes.

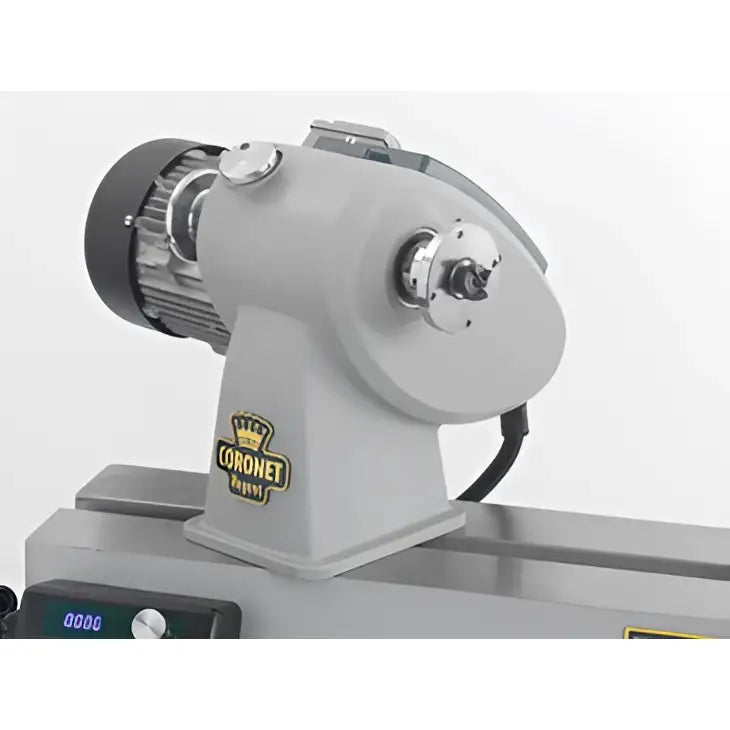

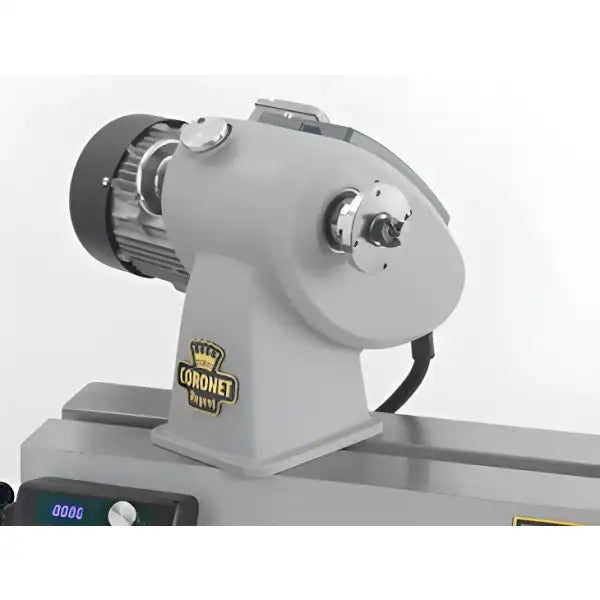

Rotating and Sliding Headstock
Unlike many cast bed lathes, the headstock of the Envoy can be rotated 360º, optimising access and also making it ideal for left-handed turners. A bearing system beneath the headstock allows it to be locked at 90º to the lathe bed and it can also be moved along the bed if required.

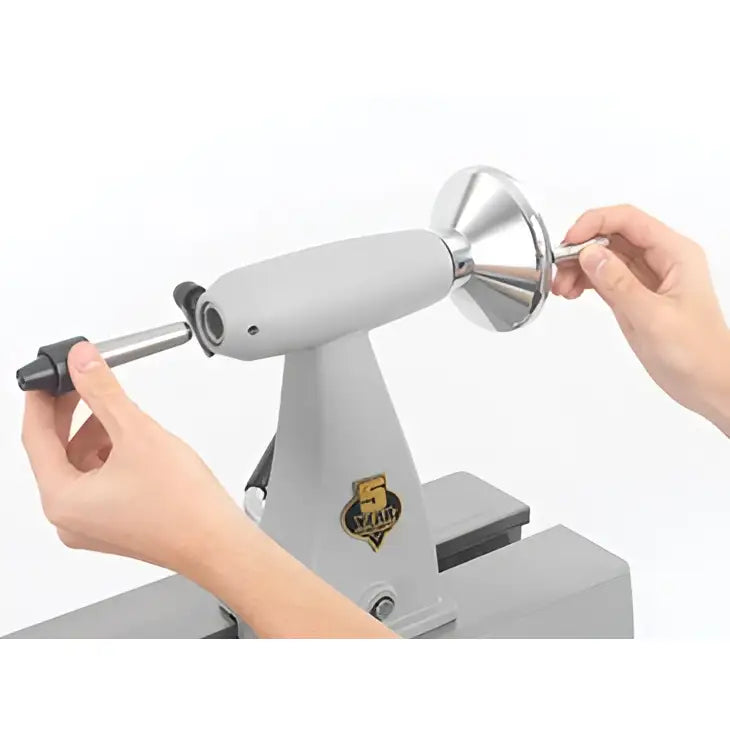

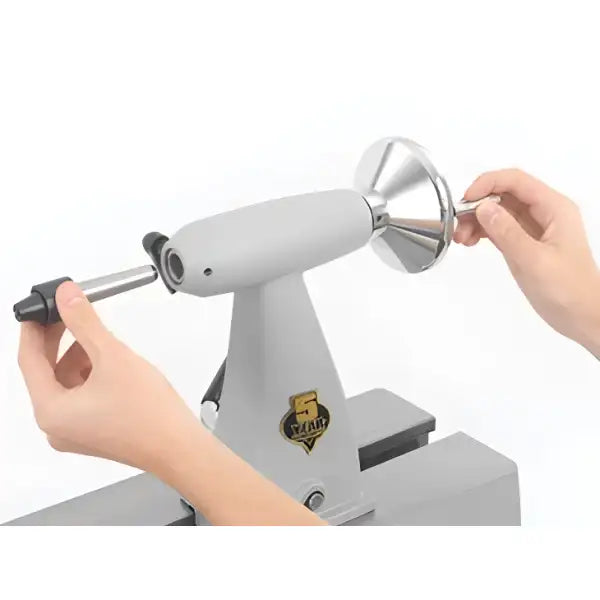

Self-Ejecting Tailstock
The self-ejecting tailstock allows for accessories to be easily and quickly removed without the need for a knockout bar. It accepts 2 Morse taper accessories, providing excellent strength and solidity.

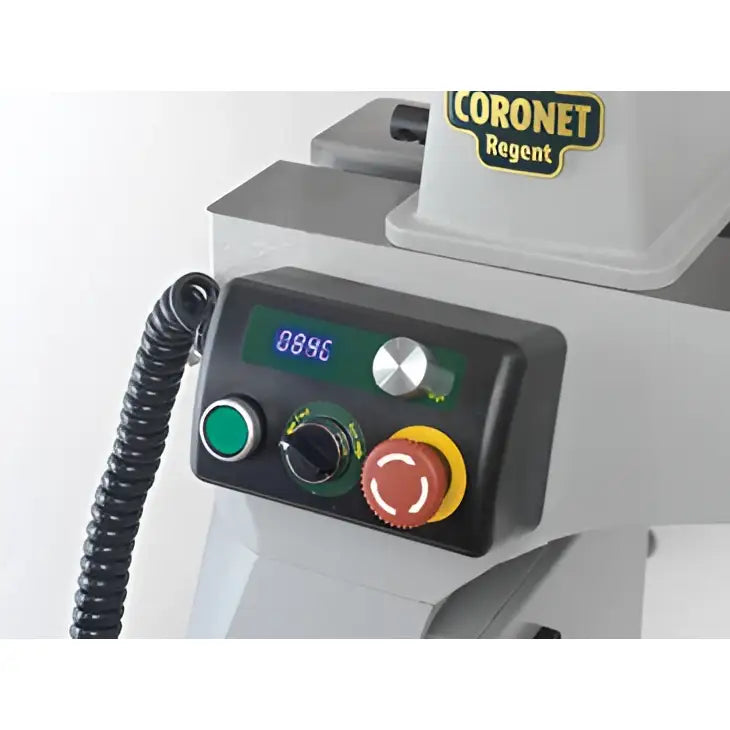

Repositionable Control Panel
The control panel of the Envoy can be placed anywhere on the lathe and is secured from the rear with a strong magnet. Ideal for when turning large timbers which can limit access to the headstock-mounted fixed control panels found on many lathes.

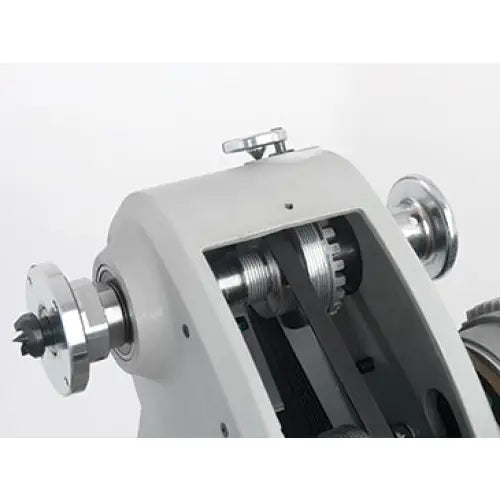

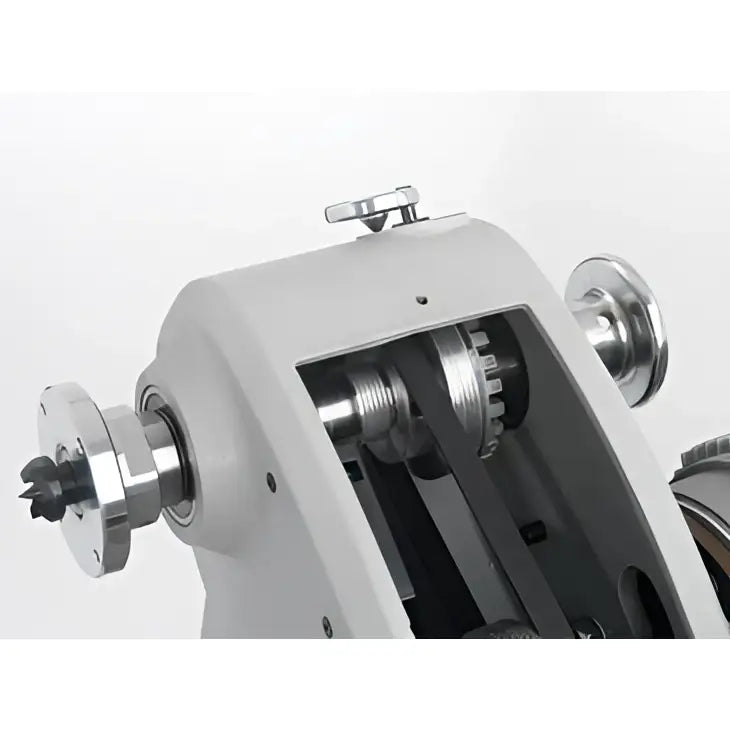

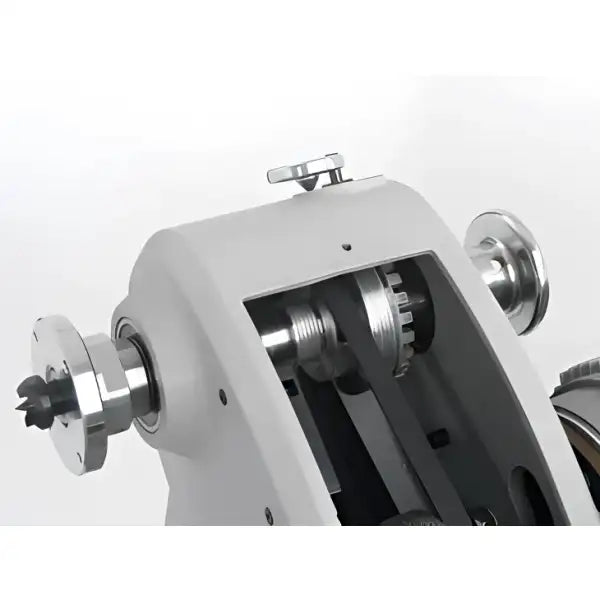

3-Step Pulley
A 3-step pulley is provided for maximum versatility. For most turning the middle pulley is ideal and provides good torque but if you need maximum torque for heavy cuts or low speed work, then the bottom pulley has immense torque capability and the top pulley gives access to the highest speeds. For ease of use the drive belt position can be seen through the inspection window of the headstock.
Product info
| Brand | Record Power |
|---|---|
| Type | Lathes |
| SKU | RP-COR-ENV |
| Weight | 140.0 kg |
Technical specifications
| Weight | 140 |
|---|---|
| Lathe size | W1435 x D540 x H1210 mm |
| Maximum between centres | 610 mm (24") |
| Maximum swing over bed | 410 mm (16") |
| Maximum bowl diameter | 1000 mm (39") |
| Morse taper | 2MT |
| Spindle thread | M33 x 3.5 |
| Motor | 1.5 KW |
| Electronic variable speed | Yes |
| Swivel/rotating headstock | Yes |
| Cast iron bed | Yes |
| Extendable bed length | Yes |
| Outboard turning | Yes |
| Spindle lock | Yes |
| Integral legstand | Yes |
| Optional bed extension | Yes |
| Optional outrigger | Yes |
| Power source | AC-powered |
| Material | Cast iron, Metal |
| Colour | Green |
| Lathe application | Woodworking |
