Record Power

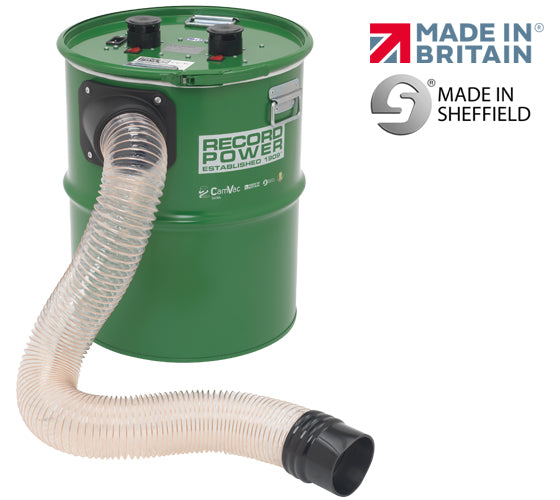

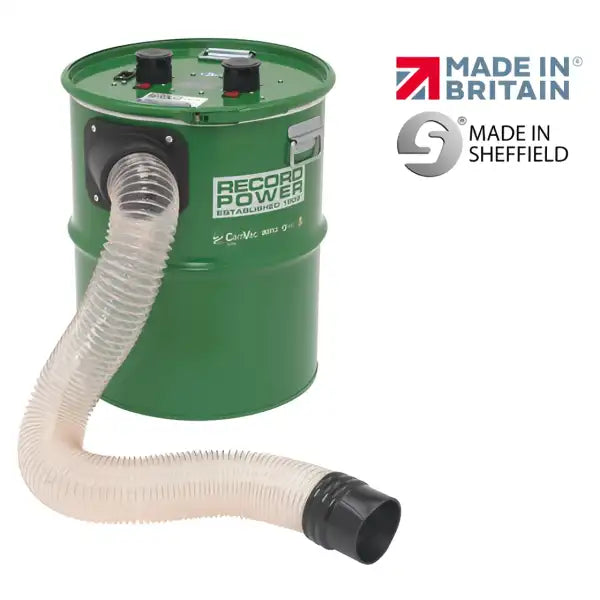

Record Power CamVac CGV386-5 Large Dust Extractor

Rated 5.0 out of 5.0(1)
Sale price £499.99 Regular price £559.99

VAT included. · P&P calculated at checkout.

Available on back order

SKU: 104850Barcode / EAN: 5055151196992

Pickup available at Greenvill Crafts Harrogate for in stock items · Usually ready within 24 hours

Free UK delivery on most orders over £150
30 day hassle-free returns
Expert advice from our Harrogate showroom
Description

CamVac Dust Extractor 90 litre

The CGV386 has an impressive capacity of 90 litres.

The cyclonic neutral vane theory technology draws the waste into the drum with great force and directs it around the outside edge, keeping the filters cleaner and allowing the waste to fall to the bottom of the drum.

The lid features a low-noise-output motor exhaust design and when the optional 2 1/2" diameter hose is fitted, the sound of the motor can be directed away from the machine, greatly reducing noise in the workshop.

Now includes ZAMV 2 Metres of 100mm Dust Extraction Hose and DX100X Easy-Fit Cuff

Low Noise Output

CamVac machines are probably the quietest high-pressure-low-volume (HPLV) dust extractors available. The motor exhaust and cover design effectively reduce noise during operation, with tests showing sound levels as low as 74 dB on a single motor model. When the optional 2 1/2" hose is fitted to the motor exhaust, this can be reduced to approximately 68 dB, making them the ideal option if neighbourhood noise is a concern.

Three-Stage Filtration to 0.5 Microns

The drum filter and motor filters give three-stage filtration for fine dust, using two washable cloth filters and a paper filter system. The 0.5 micron filtration makes them ideal for use with fine dust and other materials hazardous to health.

Cyclonic Inlet

All CamVac models feature a unique cyclonic inlet system, which draws the waste around the side of the drum and away from the filters and motors, increasing their lifespan.

Bayonet Inlet Fitting

The machine inlet features a bayonet fitting, allowing for fast and easy connection of the extraction hose to the machine. Each machine is supplied with a corresponding bayonet hose fitting, which has a positive, secure and tight fit around the hose. Additional bayonet hose fittings are available.

You may also like

Product info
BrandRecord Power
TypeDust Extractor
SKU104850
Weight17.0 kg
Technical specifications
SizeW478 x D520 x H573 mm
Weight17 kg
Motor power2 x 1 kW
Air flow108 litres per second
Capacity90 litres
Filtration0.5 microns
Twin motorYes
Three-stage filtrationYes
Cyclonic bayonet inletYes
Power sourceAC-powered
ColourGreen
Dust container typeBagless
Dry/wet cleaningDry

Downloads

Delivery & returns

Free UK delivery on orders over £150.

Returns accepted within 30 days in original condition & unopened packaging*

  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
N
Neil P.
Large capacity but compact powerful unit

Excellent piece of kit. Large capacity but still compact enough to fit under my cabinet table saw. Powerful unit that keeps the dust to an absolute minimum with excellent filtration for that fine dust which is a must for me. Much better than larger units I have in other brands. Totally happy with this purchase.
