Record Power CamVac CGV286-4 Compact Dust Extractor
VAT included. · Shipping calculated at checkout.
Pre-order
Pickup available at Greenvill Crafts Harrogate for in stock items · Usually ready in 24 hours
Description

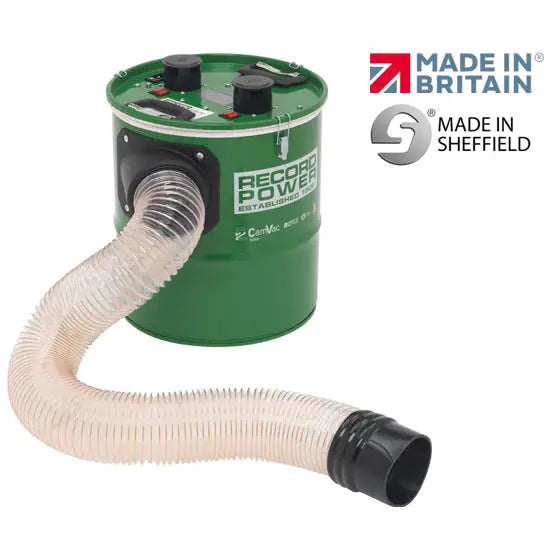

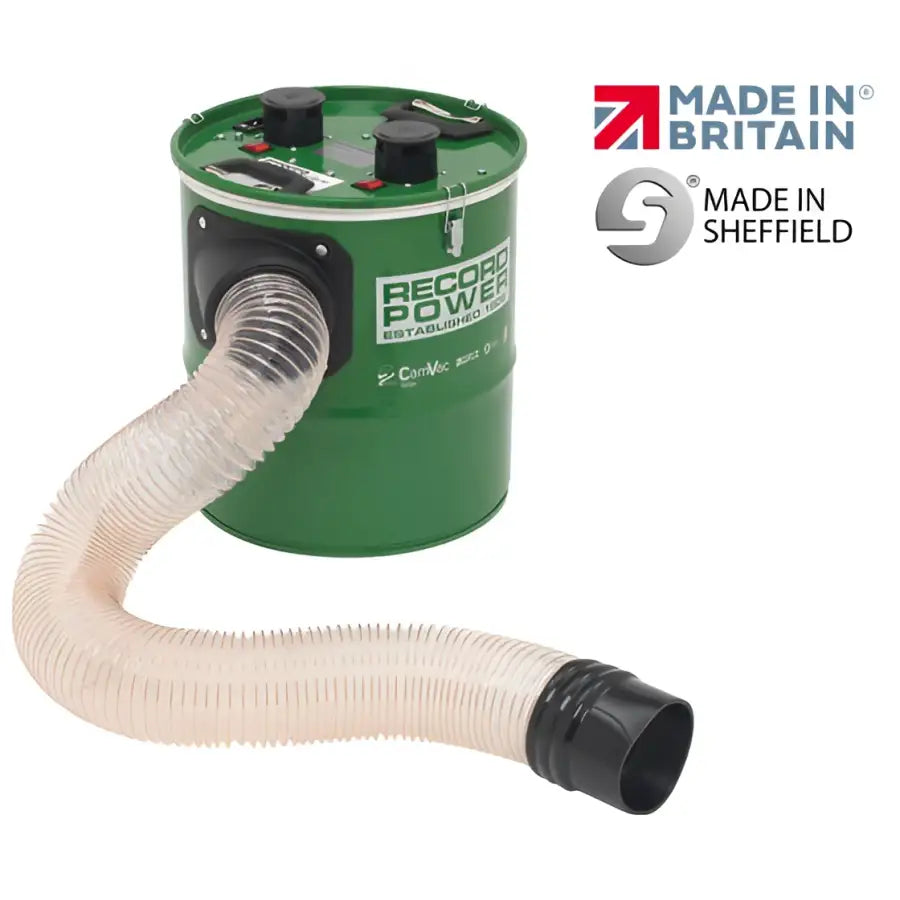

CamVac CGV286-4 Compact Extractor
This compact 36 litre machine is ideal for general maintenance in smaller premises and workshops. The cyclonic neutral vane theory technology draws the waste into the drum with great force and directs it around the outside edge, keeping the filters cleaner and allowing the waste to fall to the bottom of the drum.

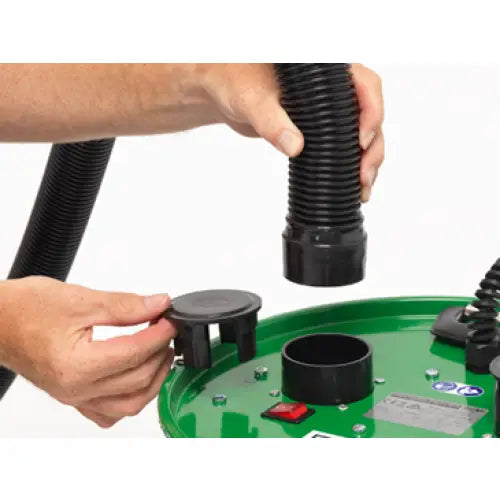

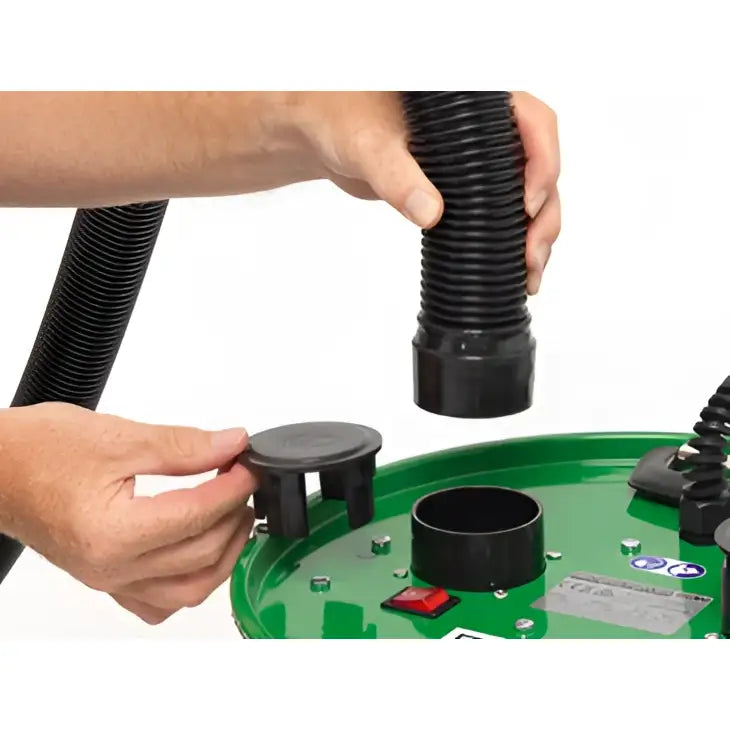

The lid features a low-noise-output motor exhaust design and when the optional 2 1/2" diameter hose is fitted, the sound of the motor can be directed away from the machine, greatly reducing noise in the workshop.
Now includes ZAMV 2 Metres of 100mm Dust Extraction Hose and DX100X Easy-Fit Cuff.
Low Noise Output
CamVac machines are probably the quietest high-pressure-low-volume (HPLV) dust extractors available. The motor exhaust and cover design effectively reduce noise during operation, with tests showing sound levels as low as 74 dB on a single motor model. When the optional 2 1/2" hose is fitted to the motor exhaust, this can be reduced to approximately 68 dB, making them the ideal option if neighbourhood noise is a concern.

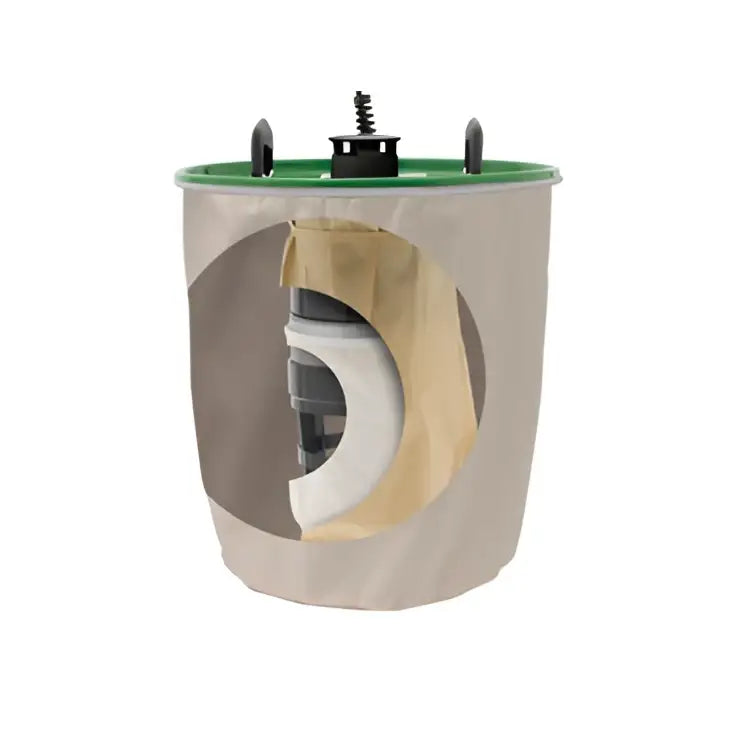

Three-Stage Filtration to 0.5 Microns
The drum filter and motor filters give three-stage filtration for fine dust, using two washable cloth filters and a paper filter system. The 0.5 micron filtration makes them ideal for use with fine dust and other materials hazardous to health.

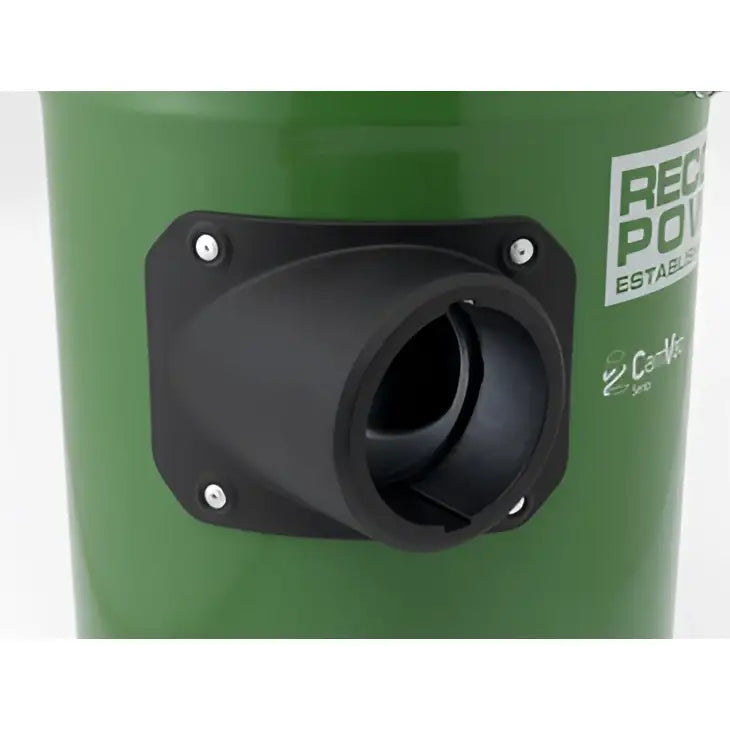

Cyclonic Inlet
All CamVac models feature a unique cyclonic inlet system, which draws the waste around the side of the drum and away from the filters and motors, increasing their lifespan.

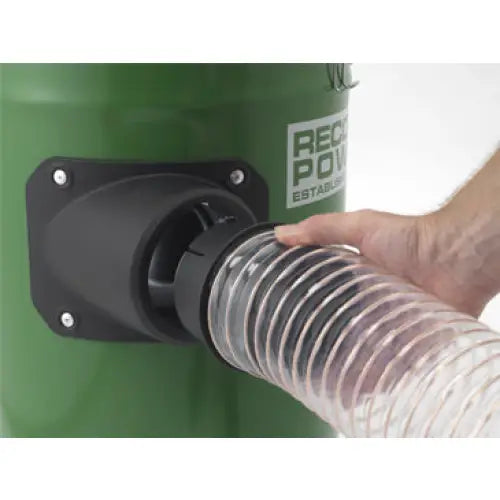

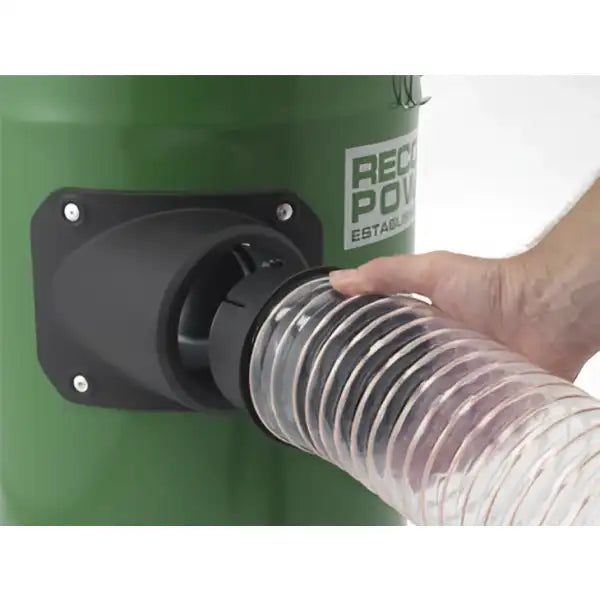

Bayonet Inlet Fitting
The machine inlet features a bayonet fitting, allowing for fast and easy connection of the extraction hose to the machine. Each machine is supplied with a corresponding bayonet hose fitting, which has a positive, secure and tight fit around the hose. Additional bayonet hose fittings are available.
Product info
| Brand | Record Power |
|---|---|
| Type | Dust Extractors |
| SKU | 104770 |
| Weight | 11.0 kg |
Technical specifications
| Size | W370 x D412 x H397 mm |
|---|---|
| Weight | 11 kg |
| Motor power | 2 x 1 kW |
| Air flow | 108 litres per second |
| Capacity | 36 litres |
| Filtration | 0.5 microns |
| Twin motor | Yes |
| Three-stage filtration | Yes |
| Cyclonic bayonet inlet | Yes |
| Power source | AC-powered |
| Colour | Green |
| Dust container type | Bagless |
| Air filtering technology | Microfilter, Washable, HEPA |
| Dirt separating method | Cyclonic |
| Dry/wet cleaning | Dry |
| Cleaning surfaces | Hard surfaces |
