Description

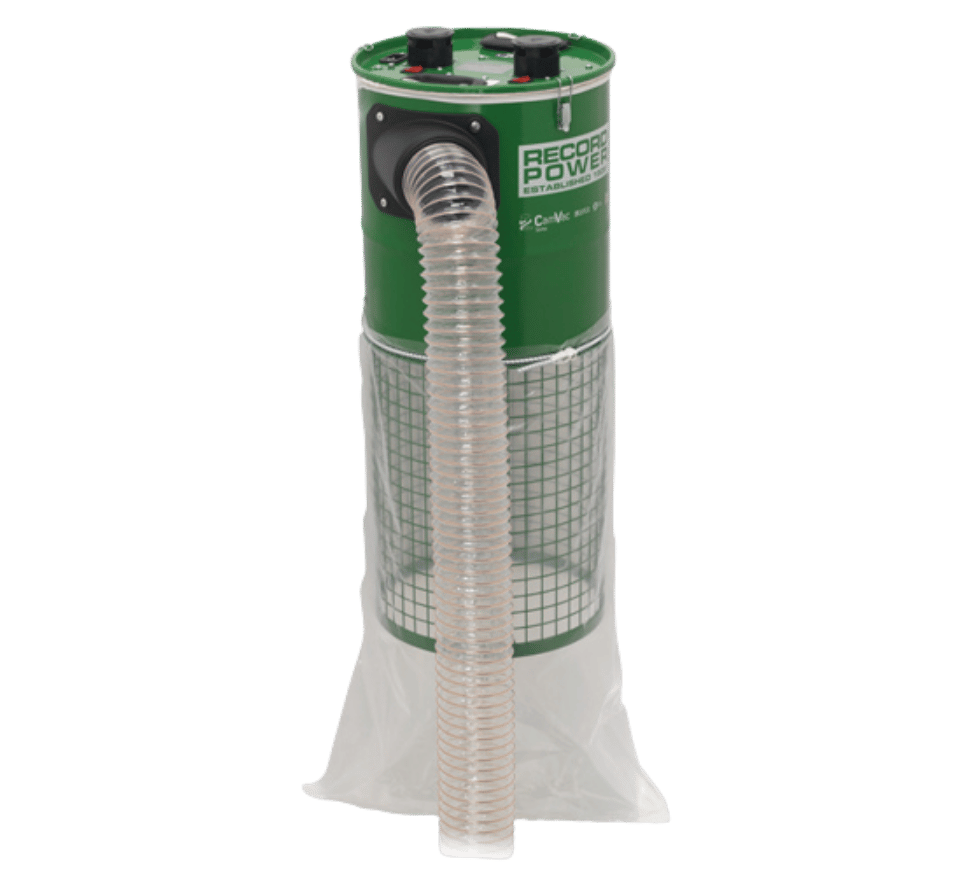

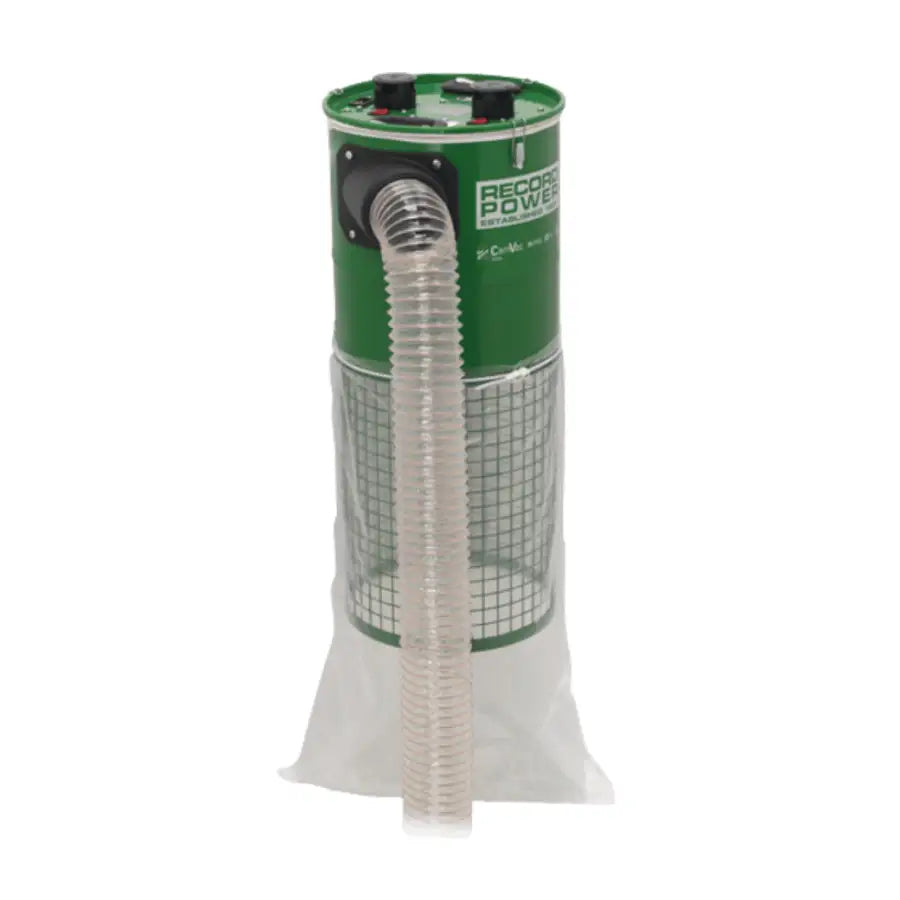

Record Power CamVac CGV286-3-WALL Compact Wall-Mounted Dust Extractor

The Record Power CamVac CGV286-3-WALL dust extractor has an impressive capacity of 150 litres and is ideal for serving extraction systems in smaller workshops.

The waste is collected in reusable bag which is fitted to the exterior of a strong steel cage to retain its shape. The cyclonic neutral vane theory technology draws the waste into the drum with great force and directs it around the outside edge, keeping the filters cleaner and allowing the waste to fall to the bottom of the bag.

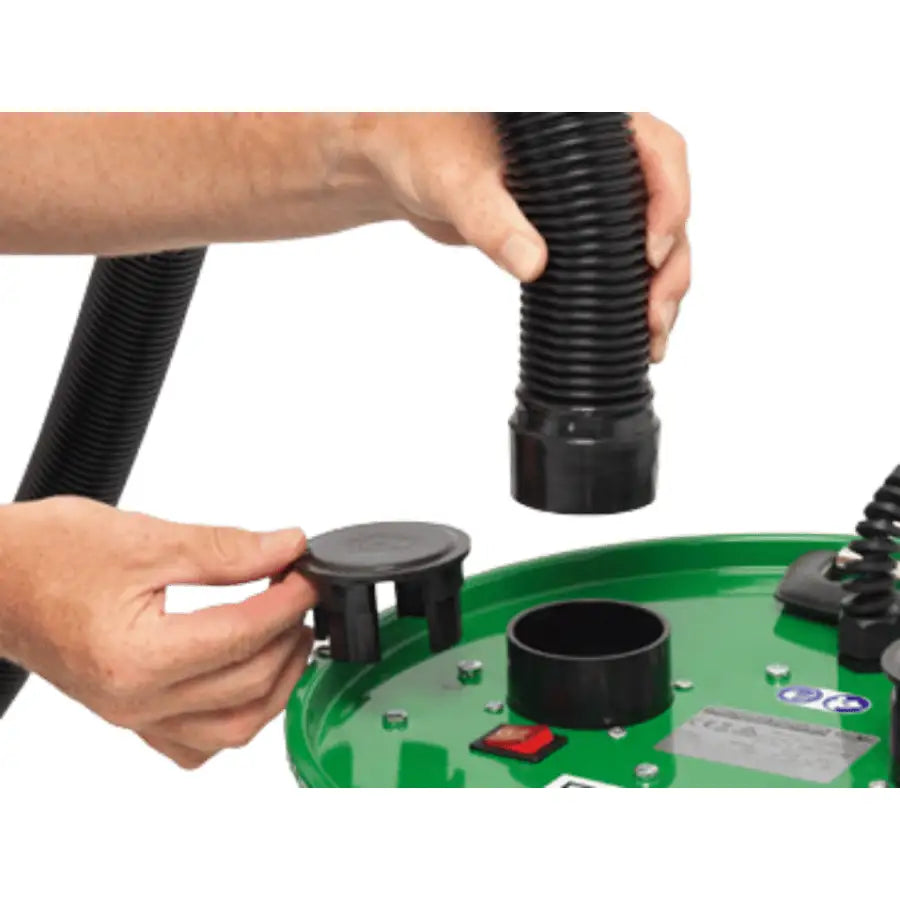

The lid features a low-noise-output motor exhaust design and when the optional 2 1/2" diameter hose is fitted, the sound of the motor can be directed away from the machine, greatly reducing noise in the workshop.

Now includes 2 Metres of 100mm Dust Extraction Hose and Bayonet Fitting for Camvac Machines for Large Extractors

Low Noise Output

CamVac machines are probably the quietest high-pressure-low-volume (HPLV) dust extractors available. The motor exhaust and cover design effectively reduce noise during operation, with tests showing sound levels as low as 74 dB on a single motor model. When the optional 2 1/2" hose is fitted to the motor exhaust, this can be reduced to approximately 68 dB, making them the ideal option if neighbourhood noise is a concern.

Three-Stage Filtration to 0.5 Microns

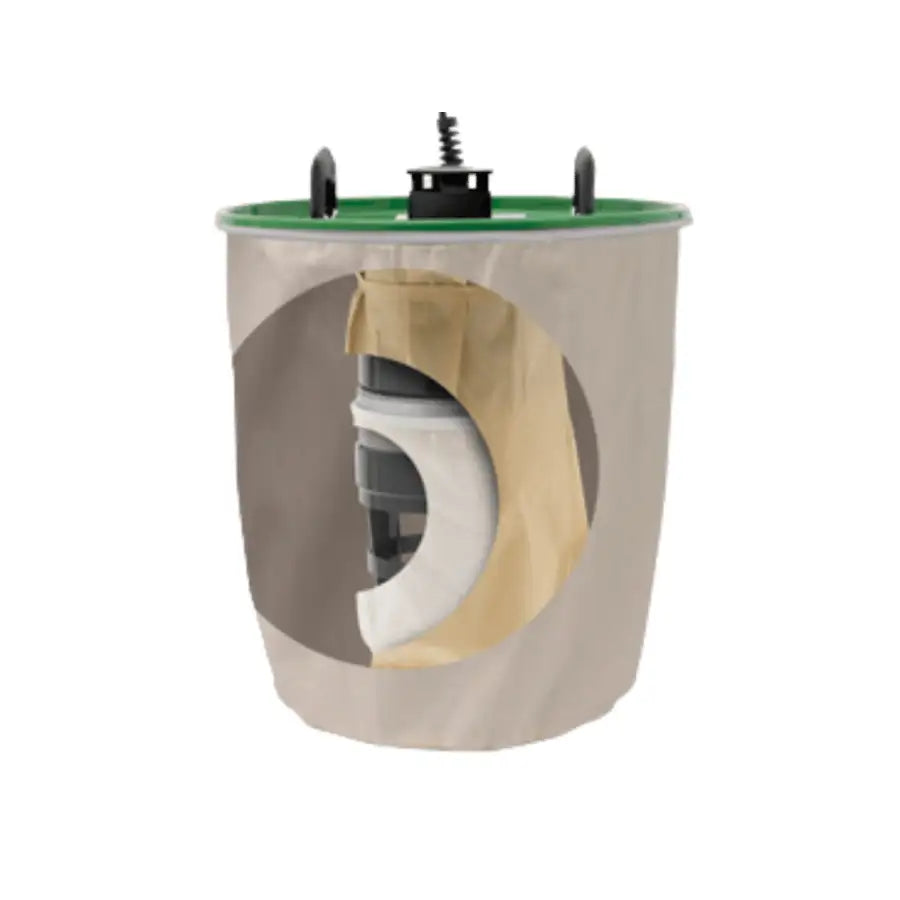

The drum filter and motor filters give three-stage filtration for fine dust, using two washable cloth filters and a paper filter system. The 0.5 micron filtration makes them ideal for use with fine dust and other materials hazardous to health.

Cyclonic Inlet

All CamVac models feature a unique cyclonic inlet system, which draws the waste around the side of the drum and away from the filters and motors, increasing their lifespan.

Bayonet Inlet Fitting

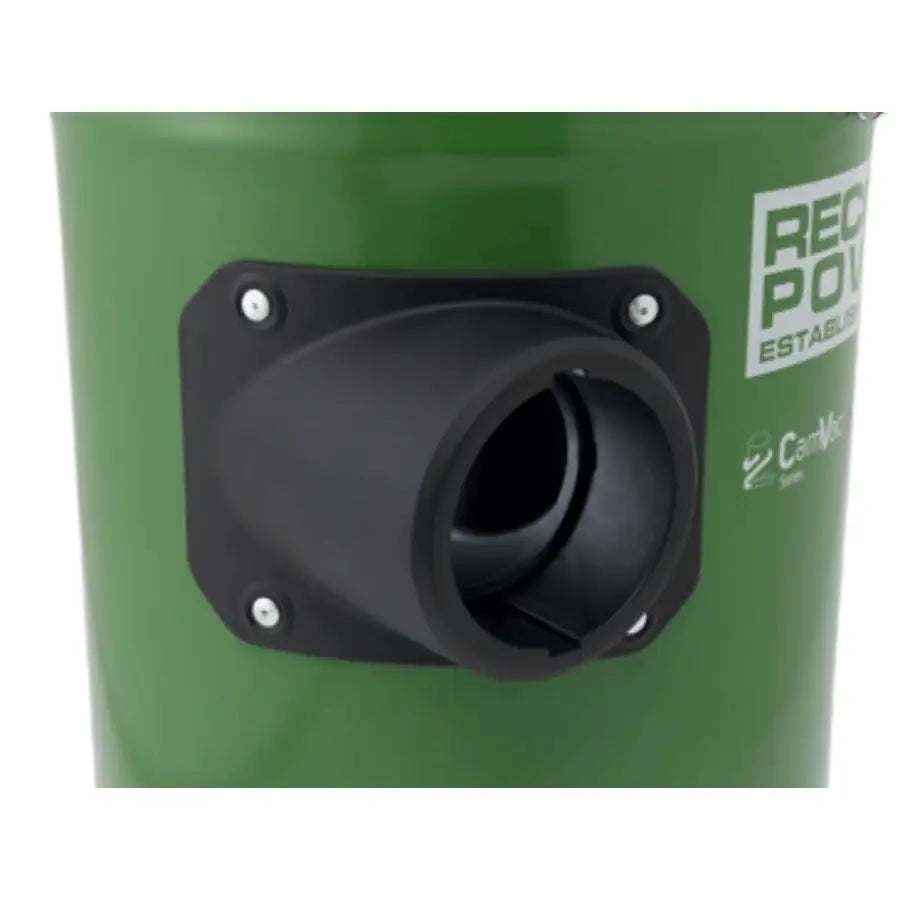

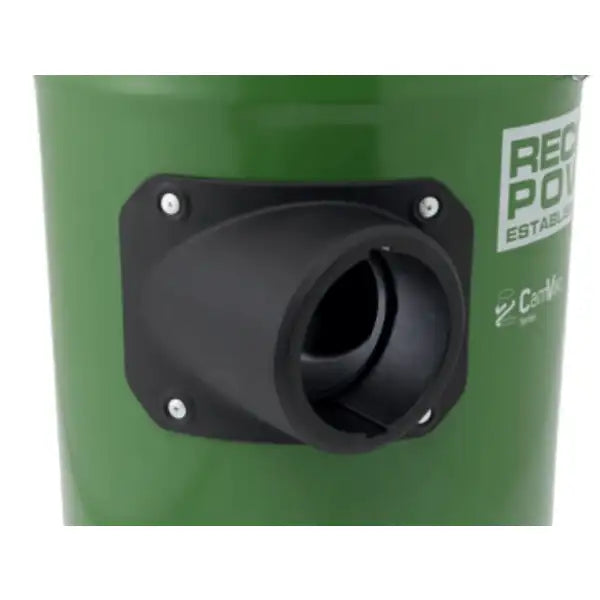

The machine inlet features a bayonet fitting, allowing for fast and easy connection of the extraction hose to the machine. Each machine is supplied with a corresponding bayonet hose fitting, which has a positive, secure and tight fit around the hose. Additional bayonet hose fittings are available.

Specifications

  • Capacity
    150 litres
  • Cyclonic Bayonet Inlet
    Yes
  • Filtration
    0.5 microns
  • Air Flow
    108 litres per second
  • Three Stage Filtration
    Yes
  • Motor Power
    2 x 1 kW
  • Twin Motor
    Yes
  • Size
    W370 x D412 x H875 mm
  • Weight
    19.5 kg
