Jet
JET JWS-34KX-M Spindle Moulder
£3,661.20
VAT included. · Shipping calculated at checkout.
Available on back order
Pickup available at Greenvill Crafts Harrogate for in stock items · Usually ready in 24 hours
Free UK delivery on most orders over £150
30 day hassle-free returns
Expert advice from our Harrogate showroom
Description

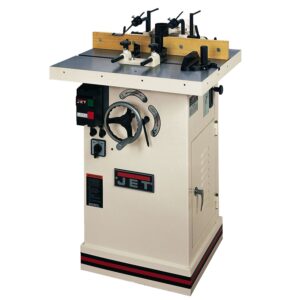

The JET JWS-34KX-M spindle moulder is a solid cast iron spindle moulder for profiling, rebating, grooving and shaping in the professional workshop. It runs on a standard 230 V single-phase supply, so it plugs straight into a home or small-business workshop.
Key features

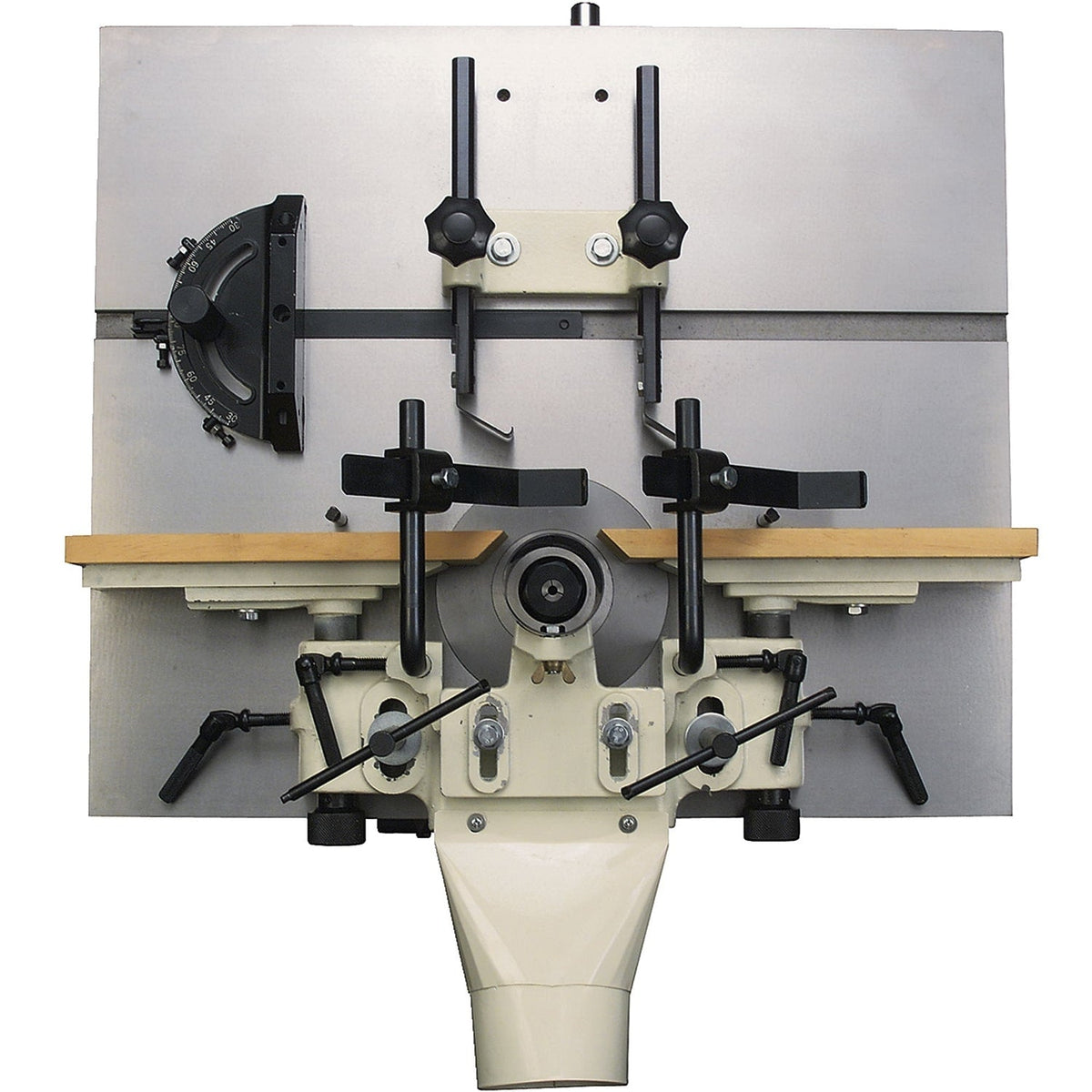

- Large precision-planed and polished cast iron table

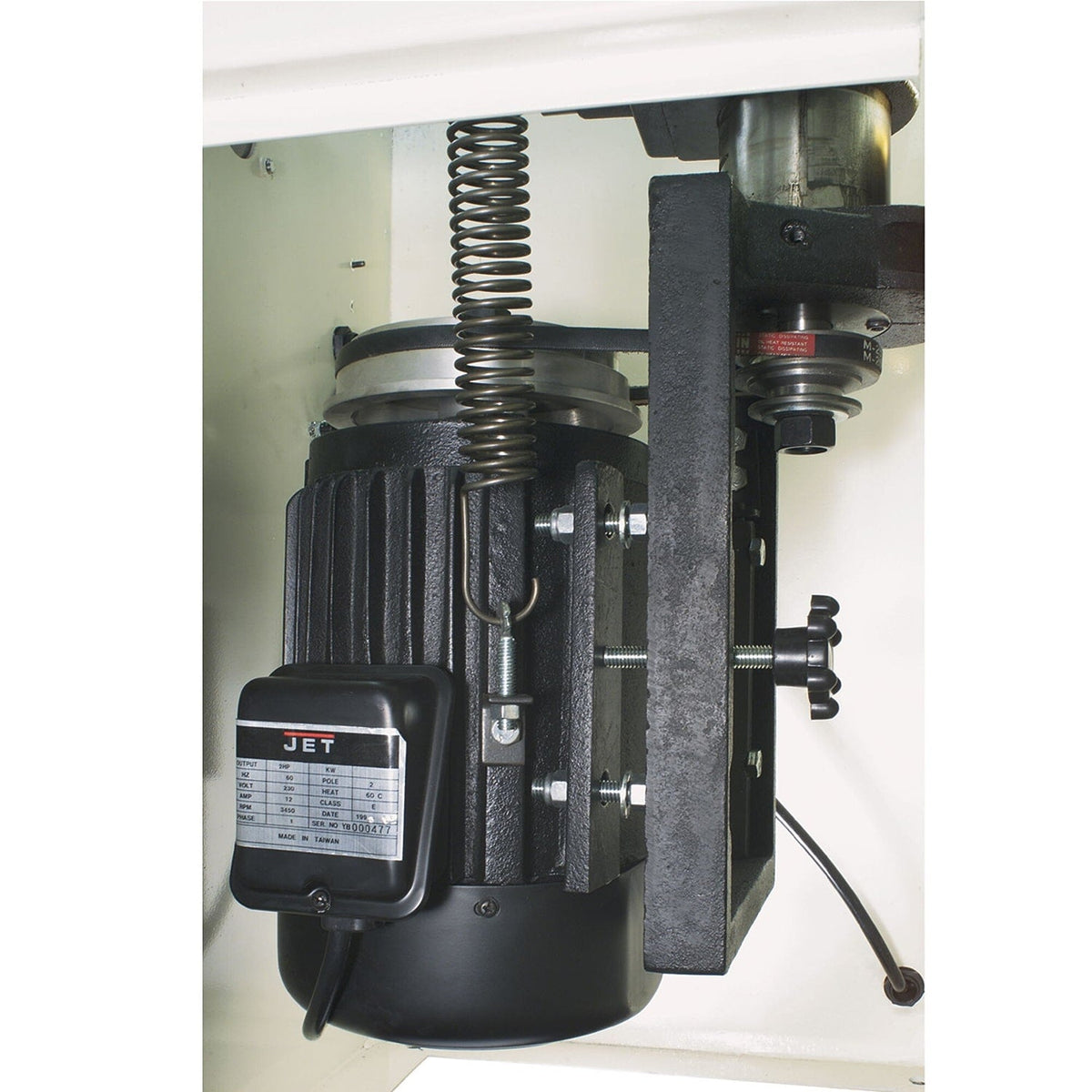

- Four spindle speeds (1,700 / 3,500 / 6,000 / 8,000 rpm) via poly-V belt
- Spindle indexing for easy tool changes
- 80 mm spindle height adjustment
- 8 mm and 12 mm collets for router cutters
- Accepts JET JOSS-S sanding sleeves for sanding curved work
Specifications
| Brand | JET |
|---|---|
| Model | JWS-34KX-M |
| Power supply | 230 V single-phase |
| Motor | 230 V / 1.9 kW |
| Spindle speeds | 1,700 / 3,500 / 6,000 / 8,000 rpm |
| Spindle diameter | 30 mm |
| Spindle travel | 80 mm |
| Max. tool diameter | 180 mm |
| Max. tool height | 70 mm |
| Max. tool height above table | 120 mm |
| Router collets | 8 / 12 mm |
| Table opening | 160 mm |
| Table size | 635 × 600 mm |
| Dust port | 100 mm |
| Dimensions | 760 × 840 × 990 mm |
| Weight | 145 kg |
Supplied by Greenvill Crafts with UK delivery. For advice on this machine, accessories or delivery to your workshop, please contact our team.
Product info
| Brand | Jet |
|---|---|
| Type | Spindle Moulder |
| SKU | JET-JWS-34KX-M |
| Weight | 183.0 kg |
Delivery & returns
Free UK delivery on orders over £150.
Returns accepted within 30 days in original condition & unopened packaging*
