JET JDP-17-T Drill Press
£1,602.00
VAT included. · Shipping calculated at checkout.
Available on back order
Pickup available at Greenvill Crafts Harrogate for in stock items · Usually ready in 24 hours
Free UK delivery on most orders over £150
30 day hassle-free returns
Expert advice from our Harrogate showroom
Description

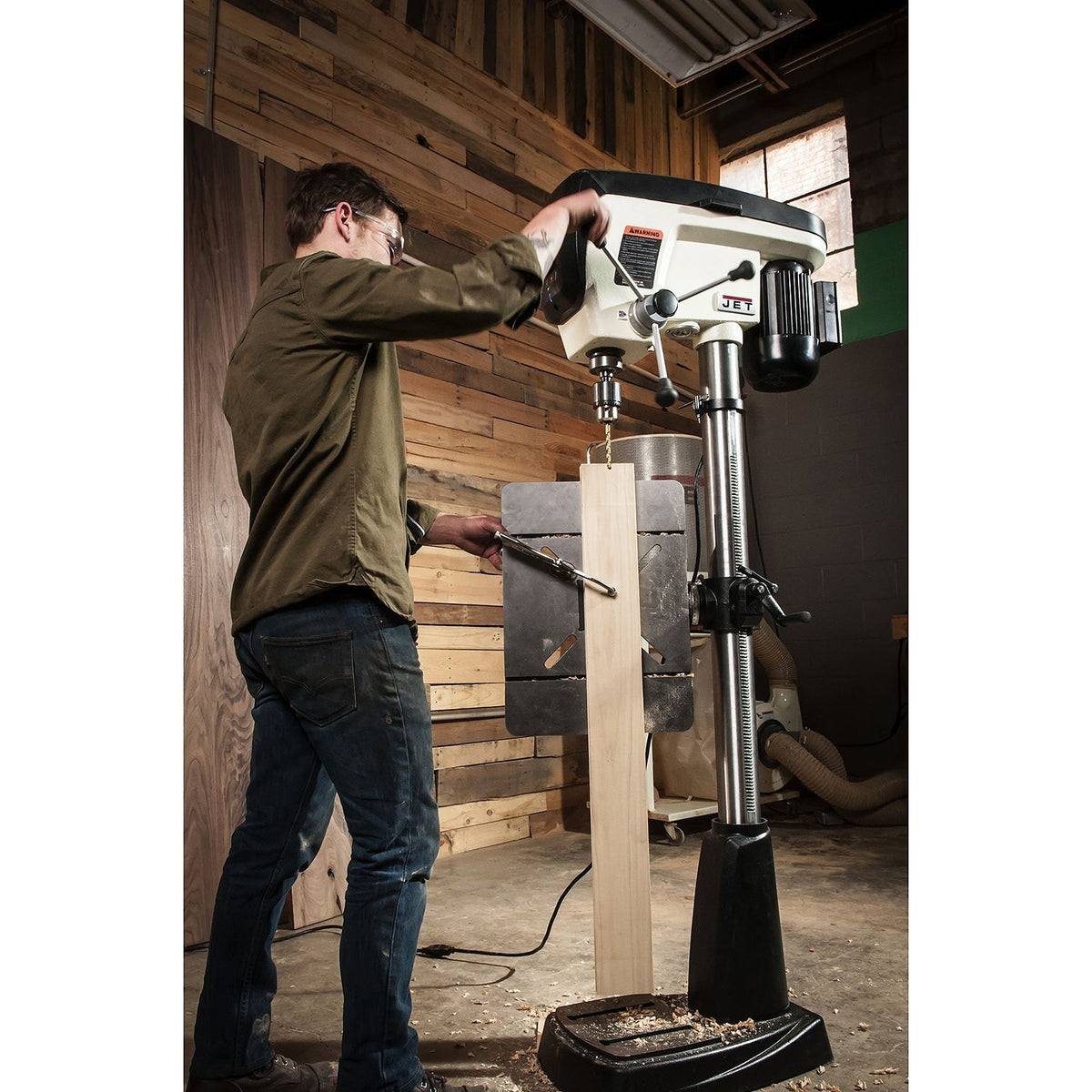

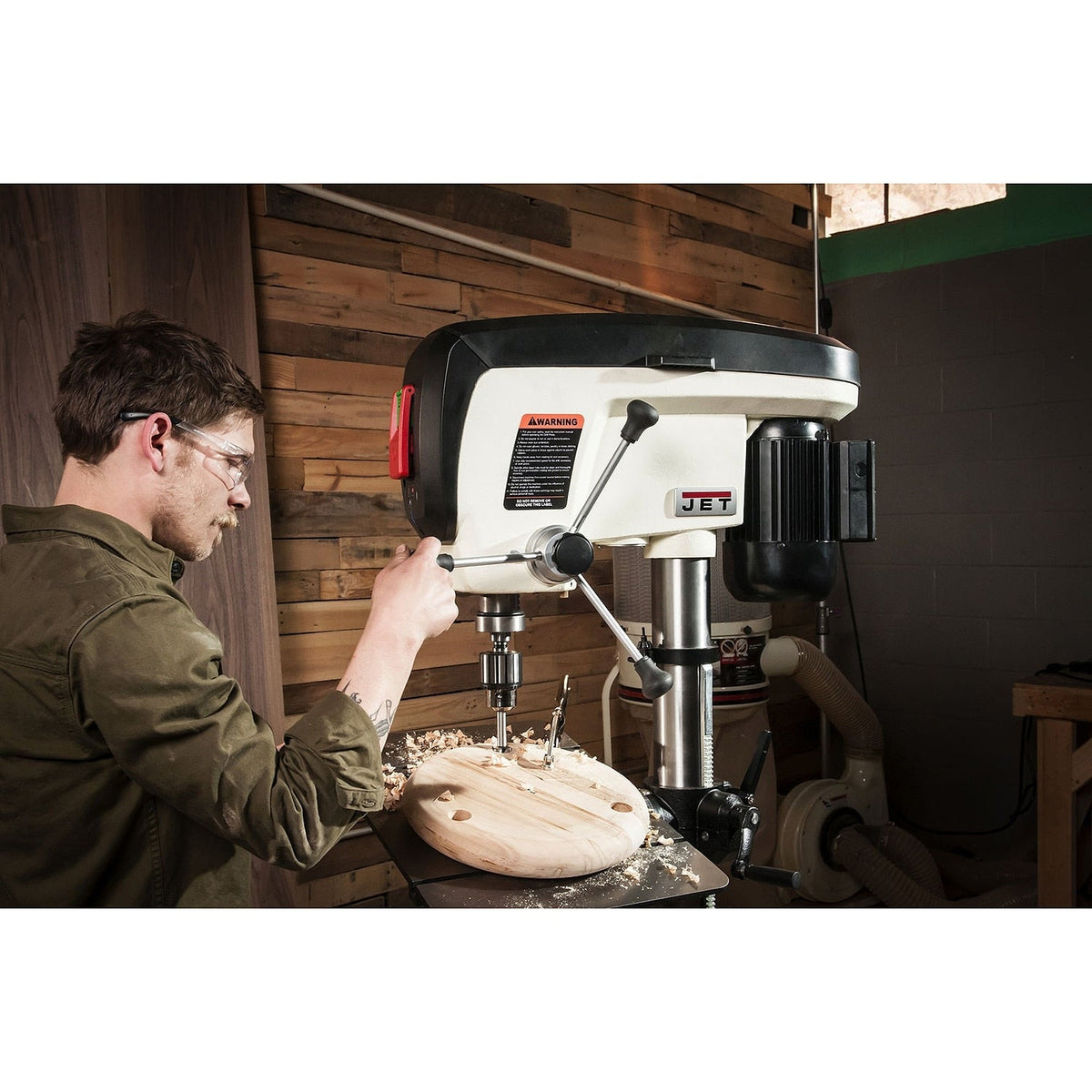

The JET JDP-17-T floor-standing drill press gives you accurate, repeatable drilling in wood and other materials, with a sturdy build for everyday workshop use. This is the 400 V three-phase version, suited to trade and industrial workshops with a three-phase supply.
Key features
- Heavy-duty floor drill press for the woodworking shop

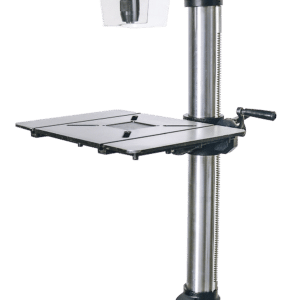

- Extra-large precision-machined table with 2 T-slots, 4 table slots and a flat clamping edge
- Replaceable MDF table insert
- 127 mm drilling stroke in a single turn of the handwheel
- Built-in depth stop for batch work
- 1.0 kW induction motor with quiet poly-V belt drive
- One-handed belt tensioning for quick speed changes
- Xacta-X laser locates the drilling centre
- Integrated LED work light prevents shadows
- Large cast iron base
- Chuck guard, belt guard and emergency stop fitted as standard
Specifications
| Brand | JET |
|---|---|
| Model | JDP-17-T |
| Power supply | 400 V three-phase |
| Motor | 400 V / 1.0 kW |
| Spindle speeds | 16 (180 – 2,900 rpm) |
| Spindle taper | MT2 |
| Spindle travel | 127 mm |
| Spindle to column | 215 mm |
| Spindle to table (max.) | 763 mm |
| Spindle to base (max.) | 1,194 mm |
| Table size | 356 × 483 mm |
| Table tilt | 90° left / right |
| Mitre T-slot / spacing | 13 / 270 mm |
| Column diameter | 80 mm |
| Weight | 86 kg |
Supplied by Greenvill Crafts with UK delivery. For advice on this machine, accessories or delivery to your workshop, please contact our team.
Product info
| Brand | Jet |
|---|---|
| Type | Drill Press |
| SKU | JET-JDP-17-T |
| Weight | 100.0 kg |
