Jet

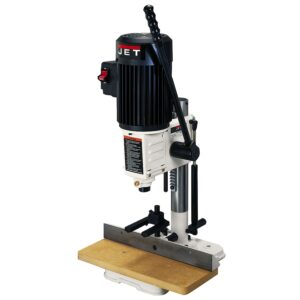

JET JBM-5 Morticer
£712.80
VAT included. · P&P calculated at checkout.
Available on back order
Pickup available at Greenvill Crafts Harrogate for in stock items · Usually ready within 24 hours
Free UK delivery on most orders over £150
30 day hassle-free returns
Expert advice from our Harrogate showroom
Description

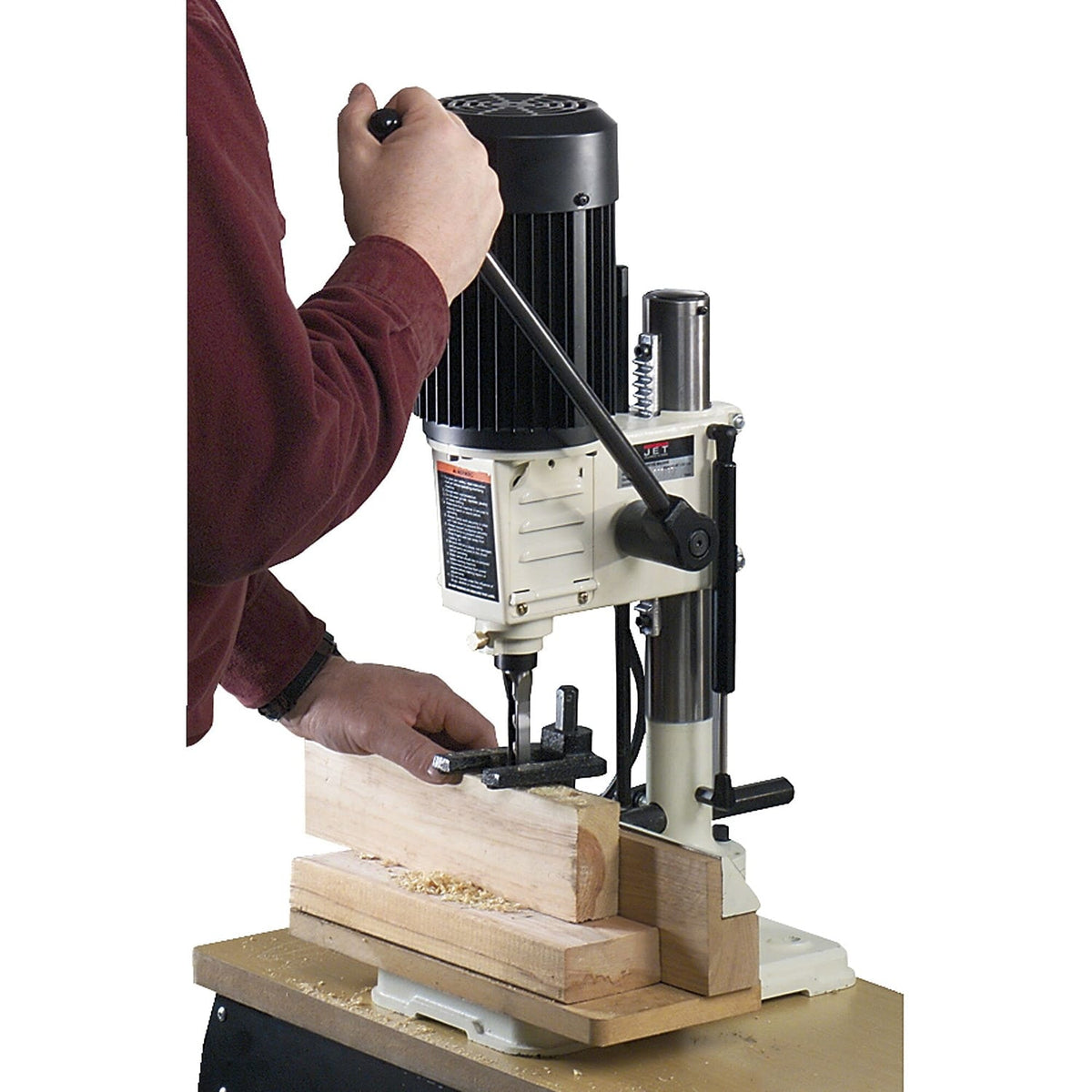

The JET JBM-5 benchtop morticer cuts clean, square mortises quickly and accurately, making it ideal for joinery, furniture making and door and window work. It runs on a standard 230 V single-phase supply, so it plugs straight into a home or small-business workshop.
Key features
- Compact and portable, ideal for the workshop or on site
- Heavy-duty cast iron construction for precise work
- Rack-and-pinion height adjustment with gas-pressure balancer
- Lever can be fitted on either side
- Adjustable fence, workpiece hold-down and depth stop
- Replaceable MDF table surface
- Supplied without chisel
Specifications
| Brand | JET |
|---|---|
| Model | JBM-5 |
| Power supply | 230 V single-phase |
| Motor | 230 V / 0.7 kW |
| Spindle speed | 1,450 rpm |
| Max. chisel size | 12 × 12 mm |
| Max. bore diameter | 10 mm |
| Max. workpiece height | 105 mm (155 mm with optional extension) |
| Max. chisel stroke | 120 mm |
| Table size | 345 × 150 mm |
| Chisel centre to fence | 90 mm |
| Dimensions | 370 × 350 × 750 mm |
| Weight | 23 kg |
Supplied by Greenvill Crafts with UK delivery. For advice on this machine, accessories or delivery to your workshop, please contact our team.
