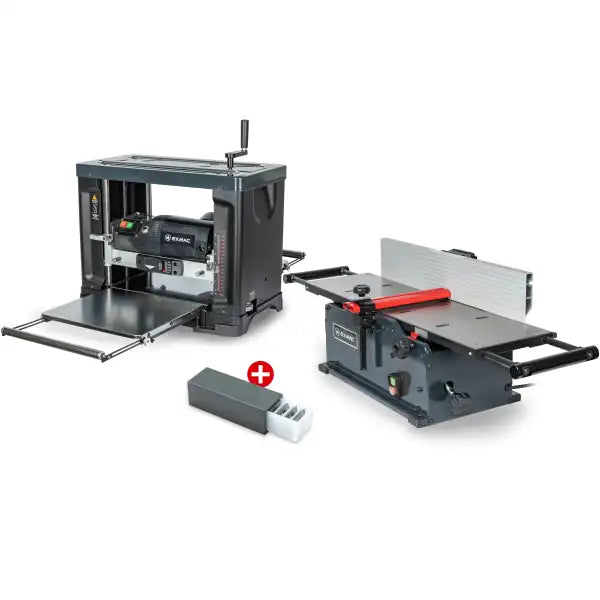

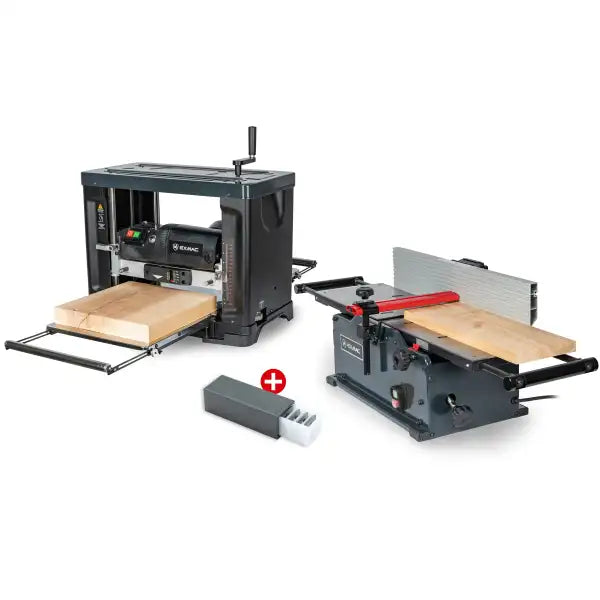

EXMAC SET A200 + D330 + HW Carbide reversible cutters

EXMAC Planers SET A200/D330/HW

The perfect combination for compact workshops - now in a SET at a special price!

With this combination kit you get the EXMAC A200 planer and the EXMAC D330 planer with an additional pack of high-quality HW reversible knife replacements.

Both planers use the same reversible HW knives, so the additional pack from the SET is the optimal complement to this planer-jointer combination.

EXMAC A200 Planer

The EXMAC A200 impresses with its robust construction, featuring solid cast iron tables that are unbeatable in this class and a unique planer spindle with offset indexable carbide (HW) inserts on four sides. The pivoting angle stop allows for edges from 90° to 45°. The total length of the cast iron tables is 770 mm and can be extended up to 1,350 mm using the integrated table extensions.

EXMAC D330 Thickness Planer

The EXMAC D330 is a planer with a robust metal construction and is particularly distinguished by its sophisticated features and details.

The two feed speeds, powerful motor, and solid planer shaft with carbide (HW) inserts on four sides guarantee excellent planed surfaces.

This compact planer features adjustable tables with integrated extensions that can be folded away when needed. Thanks to its two carrying handles, it can be stored in a space-saving manner. The robust metal housing ensures dimensional stability during both stationary and mobile use. Quick adjustment of the chip ejection system and the 8-position depth stop are practical aids and guarantee rapid work progress.

EXMAC planer shaft with HW (carburative metal) inserts:

For woodworkers who value precise and efficient work, planer blocks with reversible HW blades are an excellent choice.

The interchangeable, four-sided, indexable HW (carbide) inserts minimize downtime and protect machine components.

The low noise level ensures a pleasant working environment, and the excellent surface finish eliminates the need for subsequent sanding. Furthermore, their low energy consumption protects both the environment and your wallet.

Technical data

• Power 1200 W / 230 V
• Planer shaft speed 12,000 rpm
• Planing width 203 mm
• Maximum chip removal 3.0 mm
• Dressing stop adjustable up to 45°
• Plane knife handle with 16 reversible HW (hard metal) 4-sided plates
• 100 mm / 63.5 mm suction connection
• Storage dimensions with extension retracted (L x W x H): 836 mm x 530 mm x 330 mm
• Installation dimensions with extended extension (L x W x H): 1350 mm x 530 mm x 330 mm
• Table dimensions (L x W) 770 mm x 204 mm
• Table dimensions with extension (L x W): 1350 mm x 204 mm
• Weight approx. 33 kg

• Power 1500 W (230 HP, 2 V)
• Planer shaft speed 10,000 rpm
• Maximum planing width 330 mm
• Maximum part capacity: 330 mm x 152 mm
• Maximum chip removal at 330 mm - 1.6 mm
• Maximum chip removal at 152 mm - 3.2 mm
• Planer arbor with 26 HW (hard metal) 4-sided inserts
• 2 (!) feed speeds 5.5 and 8 m/min.
• Storage dimensions with tables folded, excluding crank handle (L x W x H): 355 mm x 560 mm x 440 mm
• Installation dimensions with crank (L x W x H) approx. 1150 mm x 560 mm x approx.
• 100 mm / 63.5 mm suction connection
• Weight approx. 35 kg

Delivery contents

A200:

• A200 surface planer
• Planer shaft equipped with reversible plates HW
• Machine tools
• 100 mm to 63.5 mm extraction adapter

D330:

• D330 thickness planer
• Planer shaft equipped with reversible plates HW
• Machine tools
• 100 mm to 63.5 mm extraction adapter
• 90° suction angle

SET including HW indexable plates, pack of 10 pieces.

Accessories available

• EXMAC replacement screws
• EXMAC Indexable Inserts HW
