EXMAC Planer A200

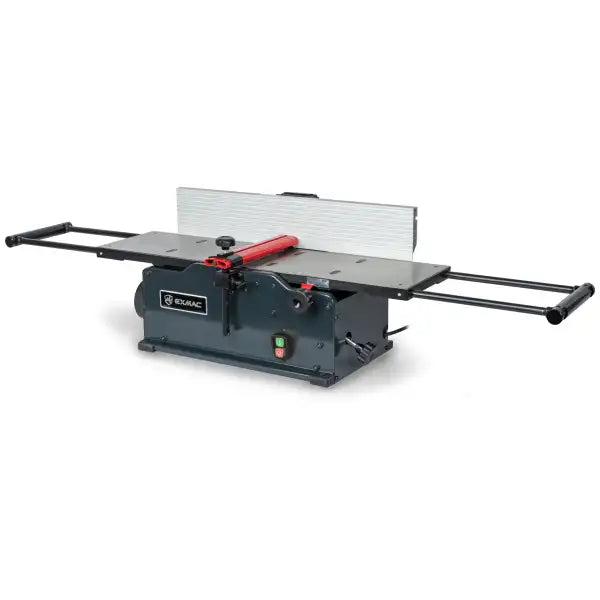

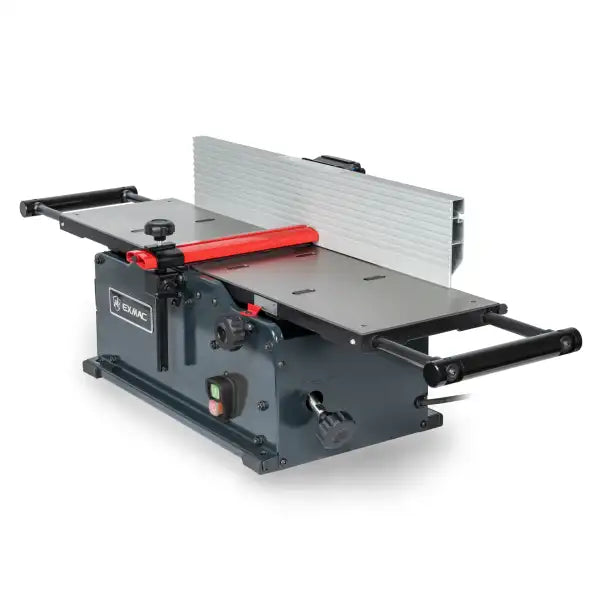

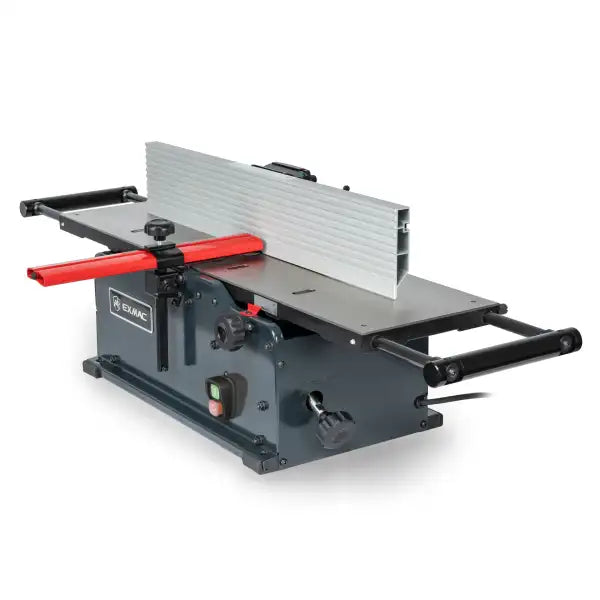

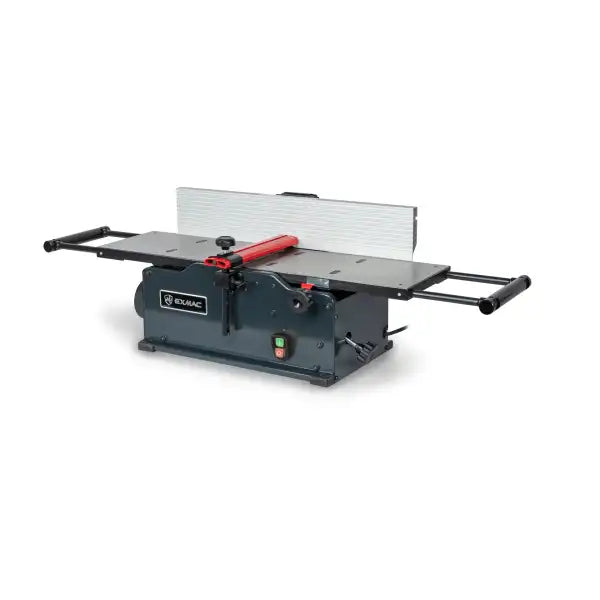

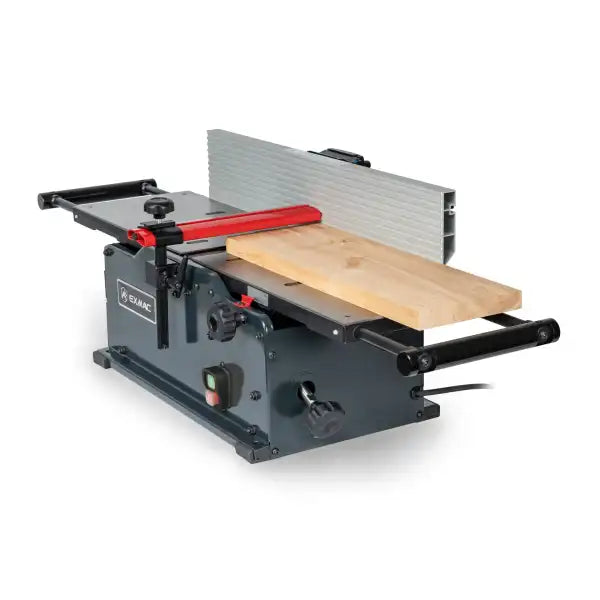

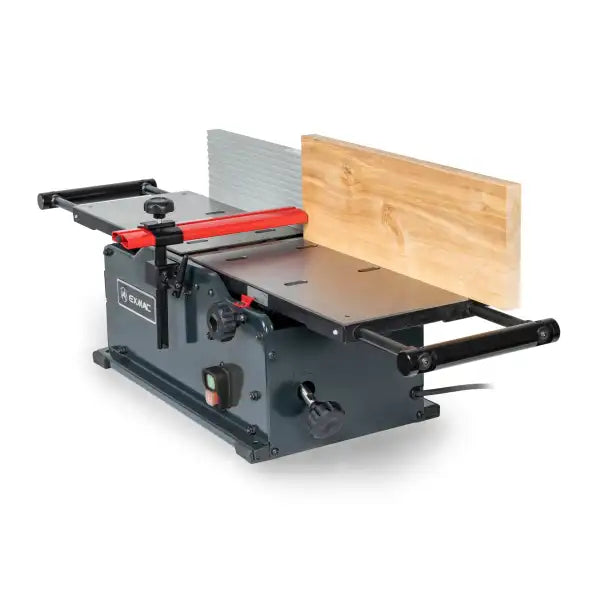

EXMAC surface planer A200

Perfect planing results in a space-saving format!

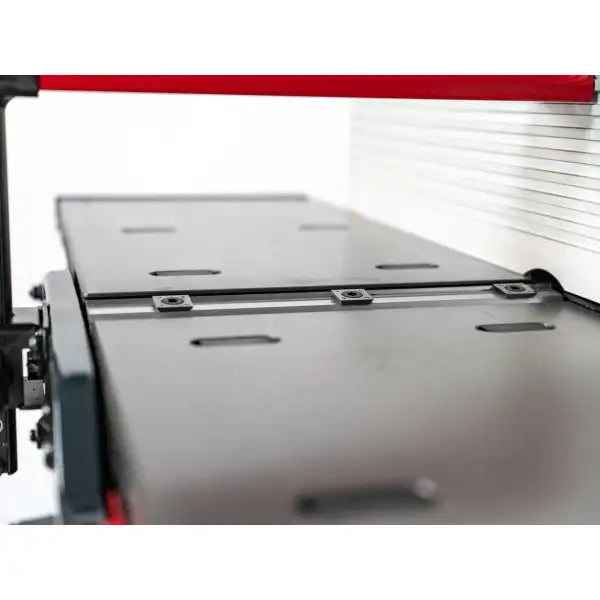

The EXMAC A200 impresses with its solid construction featuring massive cast iron tables that are unbeatable in this class and a unique cutterhead with offset 4-sided carbide (HW) indexable inserts.

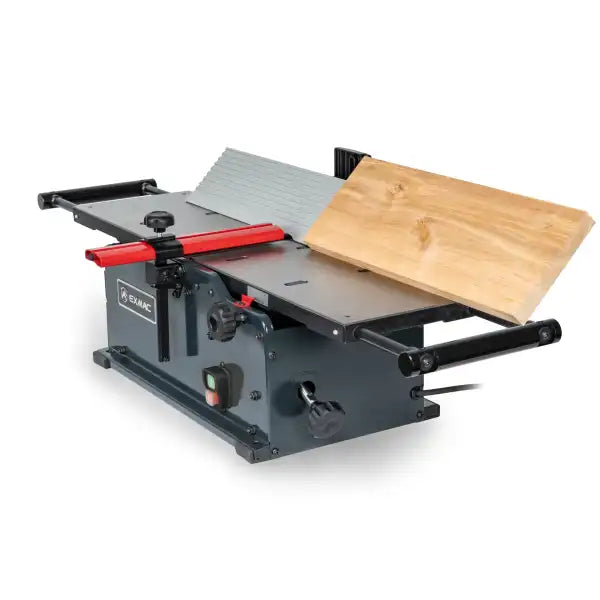

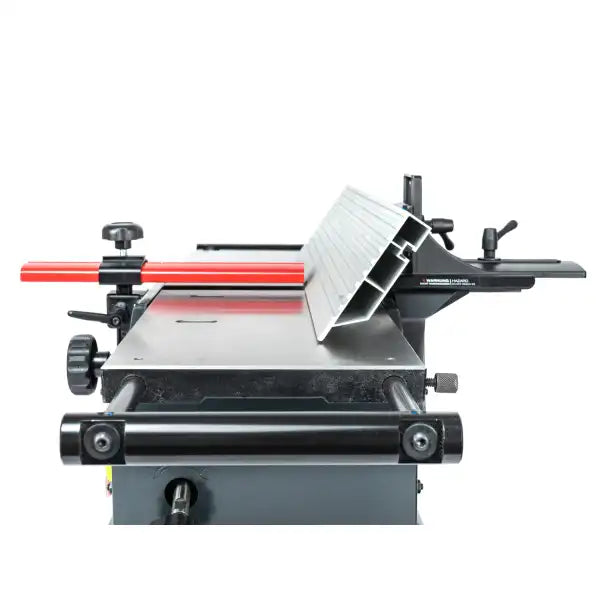

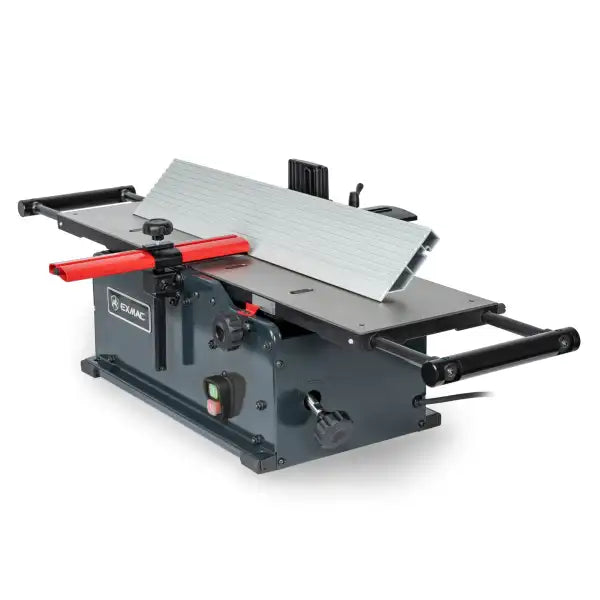

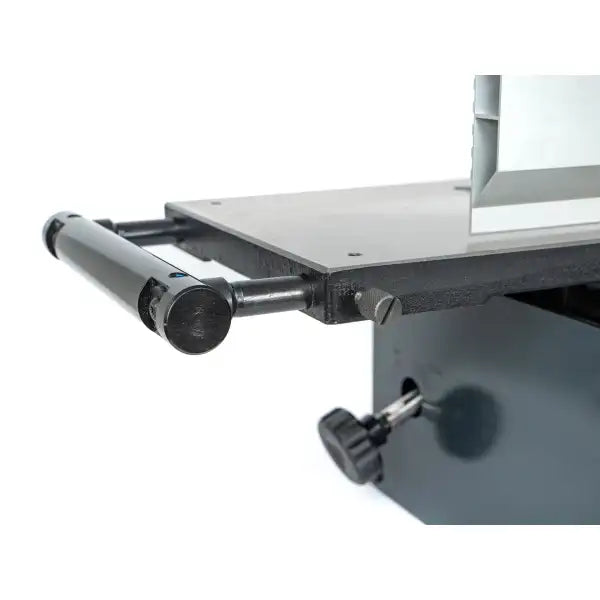

The swiveling angle stop allows for edges from 90° to 45°. The overall length of the cast iron tables is 770 mm and can be extended to 1,350 mm with the integrated table extensions.

The EXMAC A200 offers maximum performance in minimal space and impresses with its outstanding price-performance ratio.

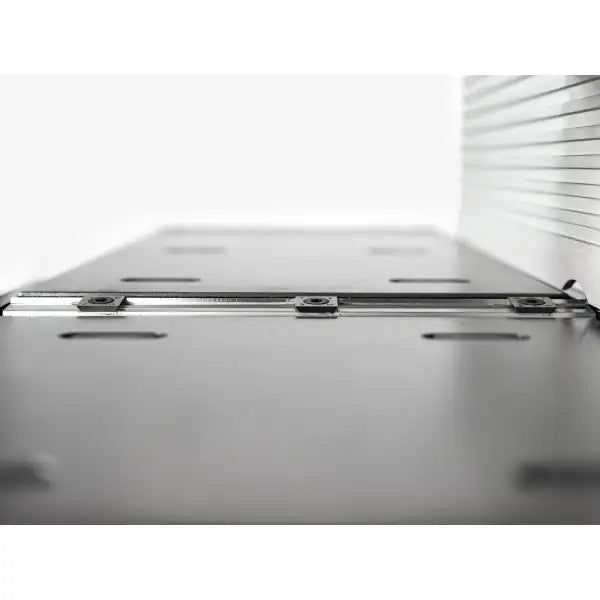

Planing shaft with HW (carbide) indexable inserts (4-sided use!):

The advantage of this carbide reversible cutterhead over conventional strip cutterheads lies not only in its long cutting edge life, but also in the fact that no fine adjustments are necessary when changing planer knives. This naturally saves time and eliminates tedious adjustment work. Repeatability, and therefore precision, is a significant advantage of HW indexable inserts. If an insert is damaged, it is sufficient to replace only that one insert, rather than potentially replacing all the blades, as would be the case with a planer cutterhead. For woodworkers who value precise and efficient machining of their workpieces, planer shafts with carbide inserts are an excellent choice. The four-sided, replaceable carbide inserts reduce downtime and protect machine components. The low noise level ensures a pleasant working environment, and the excellent surface finish eliminates the need for subsequent sanding. Furthermore, their lower energy consumption saves both the environment and money.

Advantages of the EXMAC A200 surface planer at a glance:

• High-quality and precisely manufactured components
• Solid cast iron planing tables, extendable
• Top planing results thanks to the modern reversible cutterhead, equipped with HW (carbide) reversible inserts
• Time-saving and precise changing of indexable inserts without complex adjustment work
• The HW indexable inserts are ground on 4 sides and therefore usable 4 times, this saves costs and increases the service life enormously.
• Significantly quieter in operation than many other machines with conventional planer shafts

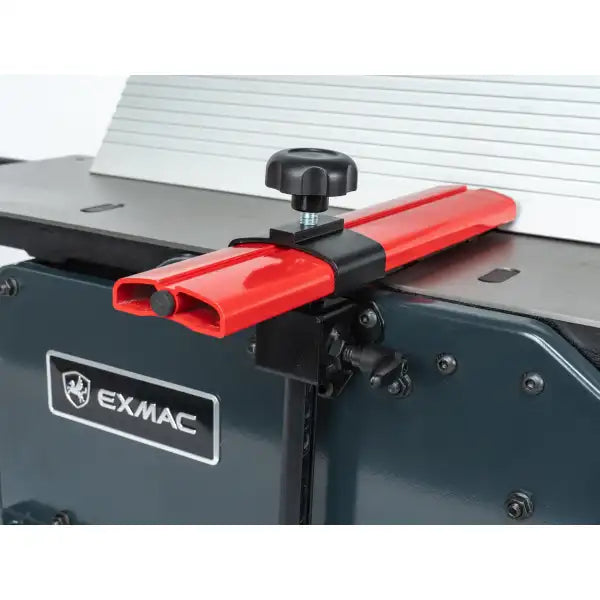

• Swiveling aluminum stop, anodized
• Powerful drive motor with 230V connection
• Compact dimensions, easy to store, ideal for construction sites or weekend homes, etc.
• 5-year EXMAC warranty

Technical data

• Power 1,200 W / 230 V
• Planer shaft speed: 12,000 rpm
• Planing width 203 mm

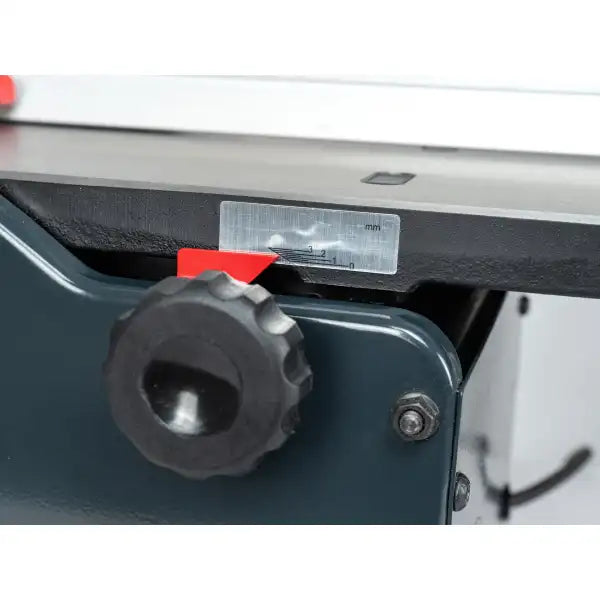

• Max. chip removal 3.0 mm

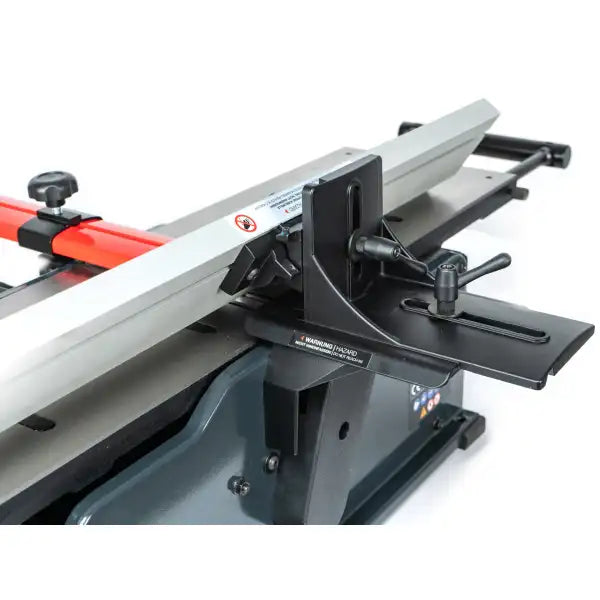

• Jointer fence swivels up to 45°
• Planer cutterhead with 16 pcs. HW (carbide) indexable inserts, usable on 4 sides

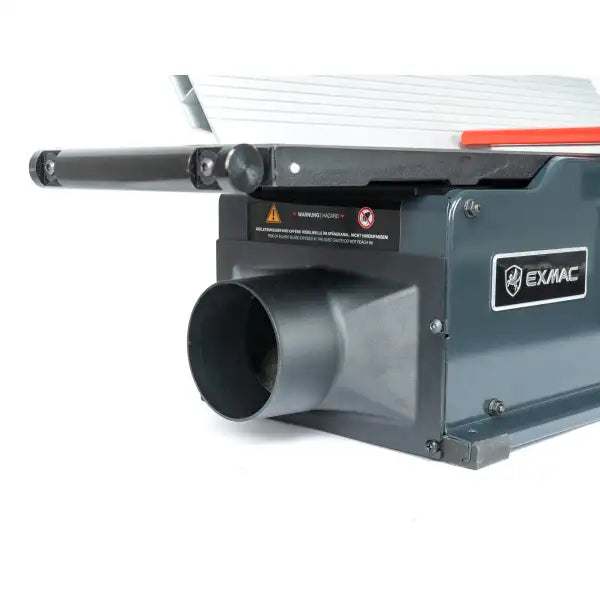

• Extraction port 100 mm / 63.5 mm

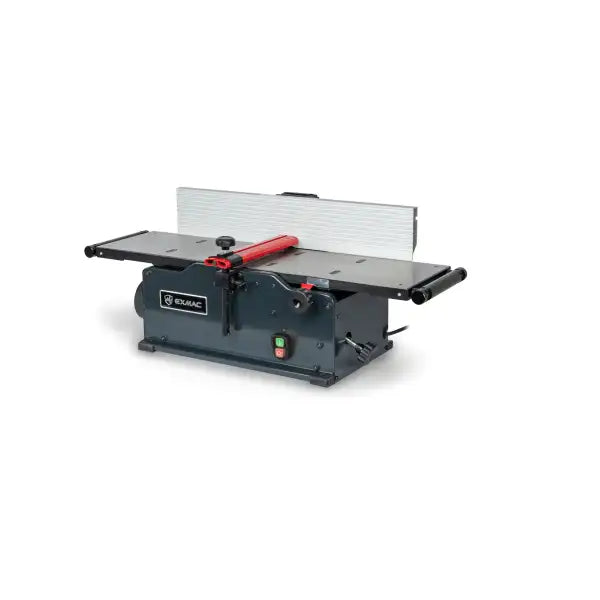

• Storage dimensions with extension retracted (L x W x H): 836 mm x 530 mm x 330 mm

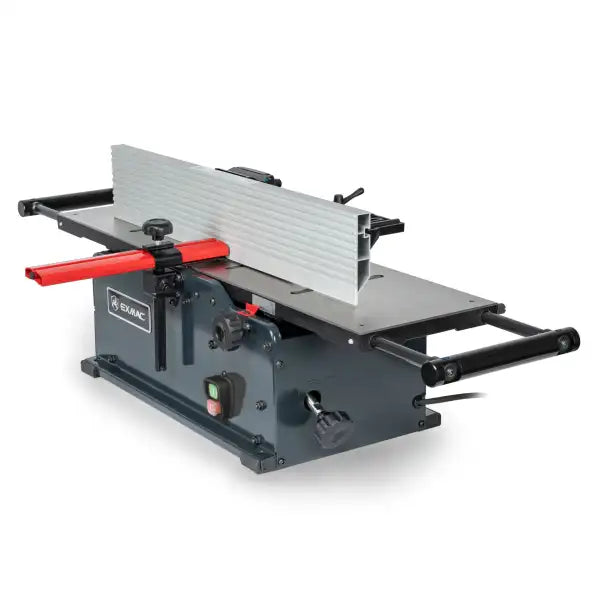

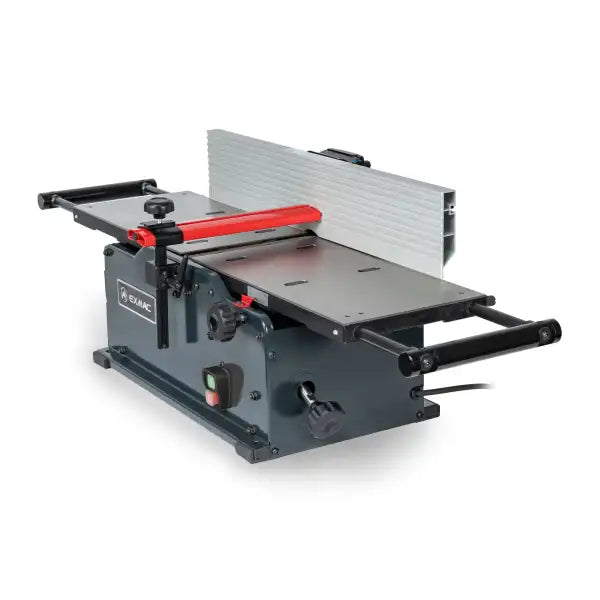

• Dimensions when extended (L x W x H): 1350 mm x 530 mm x 330 mm
• Table dimensions (L x W) 770 mm x 204 mm
• Table dimensions with extension (L x W) 1350 mm x 204 mm
• Weight approx. 33 kg
• Made in Taiwan

Accessories available

• EXMAC replacement screws
• EXMAC Indexable Inserts HW
