Axminster

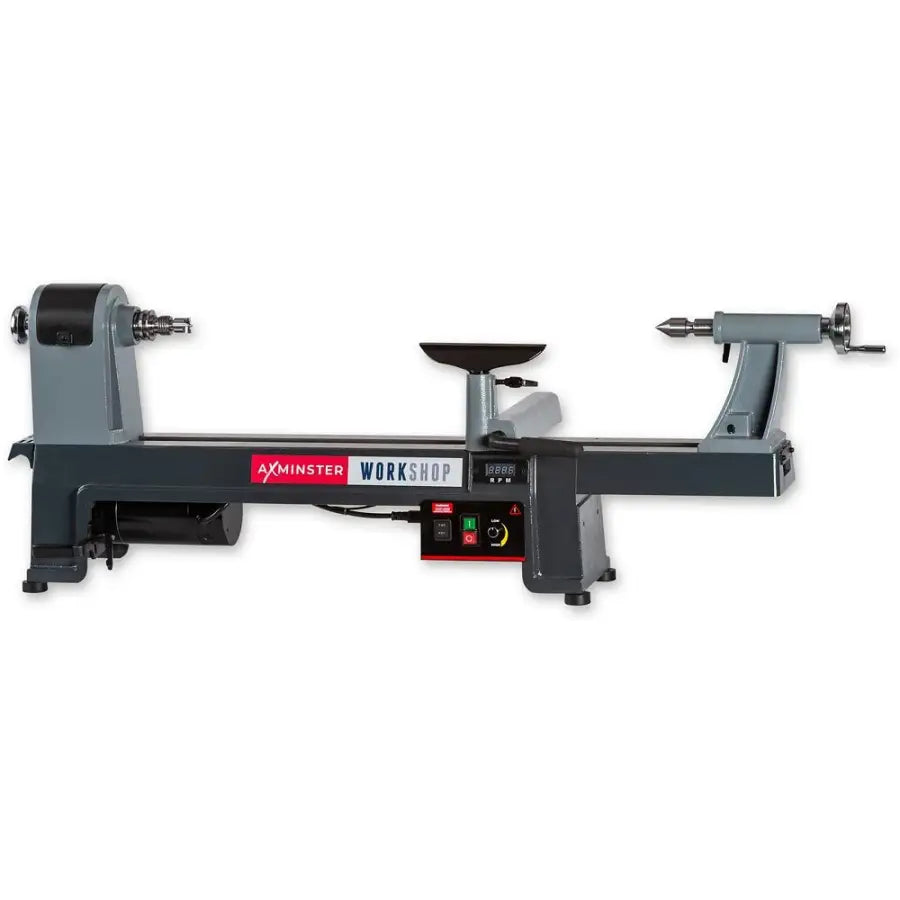

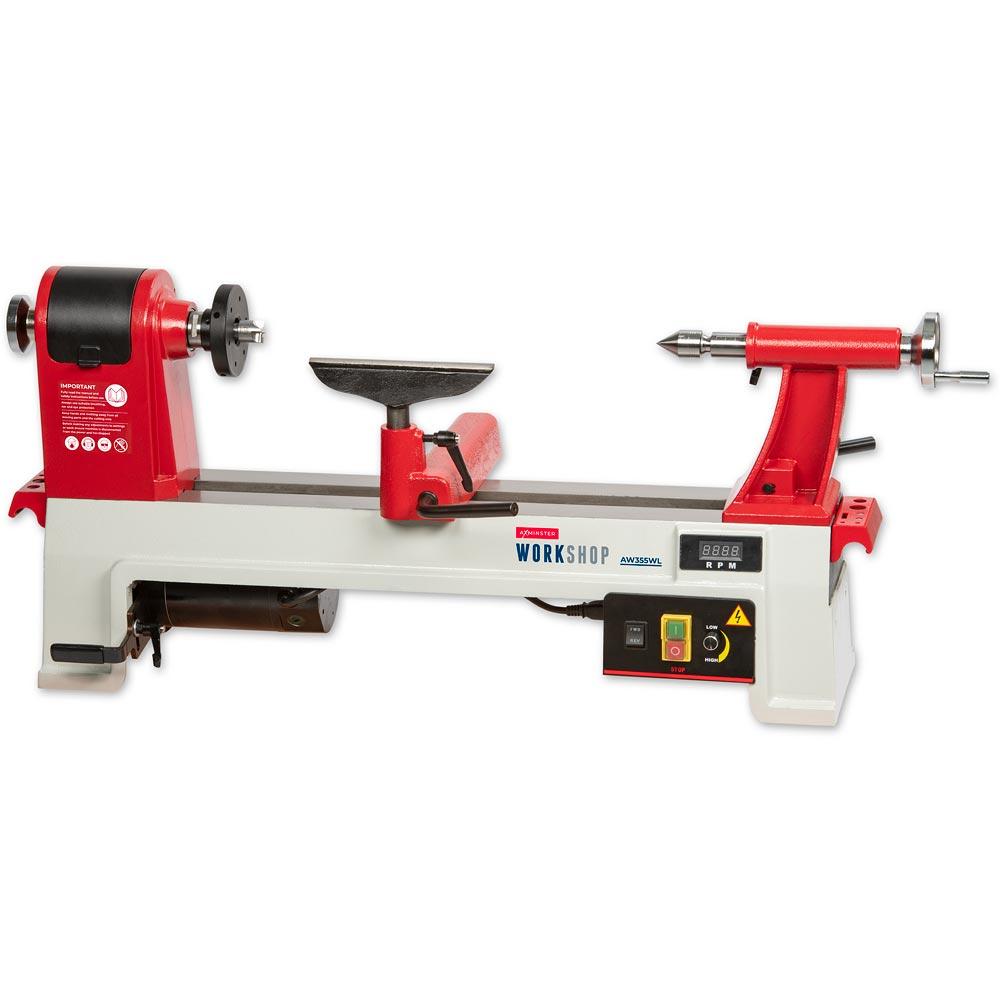

Axminster Workshop AW355WL Woodturning Lathe 230V

£569.98

VAT included. · P&P calculated at checkout.

Available on back order

SKU: 107701Barcode / EAN: 5052511124565

Pickup available at Greenvill Crafts Harrogate for in stock items · Usually ready within 24 hours

Free UK delivery on most orders over £150
30 day hassle-free returns
Expert advice from our Harrogate showroom
Description

Axminster Workshop AW355WL Woodturning Lathe 230V

The AW355WL is perfect for those woodturners looking to move up from a smaller lathe, or as a first lathe for the more ambitious newcomer. With a capacity of 510mm between centres (depending on the centres fitted) and with a bowl turning capacity of 355mm, many ambitious projects can be undertaken. Use the Mini Bed Extension to increase your distance between centres to 740mm.

Key Features

  • Cast iron bed headstock and tailstock ensure minimal vibration
  • Powerful 750W DC motor, quiet and smooth operation
  • Variable speed with spindle speeds from 250-3,550rpm

In Detail

Made from grey cast iron, the stability and vibration absorbing properties will be much appreciated. Featuring a top quality DC brush motor, with variable speed, three belt ratios and reverse. It has a speed range to suit every project within its capacities. A spindle speed readout helps select the appropriate speed for the job.

The headstock has large bearings to support the spindle, a flip-up cover allows easy access to the multi-V belt for speed ratio changing. There is a 24-stop indexing facility, with a spring-loaded indent pin to hold the spindle into position. The spindle thread is M33 x 3.5, allowing many accessories to be fitted. It has a 2MT for centres.

Cam locks secure both the tailstock and tool rest holder, and both are easy to move along the bed.

Mounted on rubber feet and supplied with Axminster drive and tailstock centres, 200mm tool rest, 100mm faceplate and Axminster Workshop Mini Bed Extension.

Specifications

Distance Between Centres 510 mm
EAN Barcode 5052511124565
Headstock Taper 2 MT
Lathe Speed 250 - 3,550 rpm (var)
Max Diameter over Bed 355 mm
Model AW355WL
Nett Weight 57 kg
Overall L x W x H 1,040 mm x 370 mm x 480 mm
Power 750 W
Rating Regular Use
Spindle Thread M33 x 3.5 mm
Tailstock Ram Travel 70 mm
Tailstock Taper 2 MT
Tool Post Diameter 25.4 mm (1")
Voltage 230 V

Video

Product info
BrandAxminster
TypeLathes
SKU107701
Weight57.0 kg
