10" Cabinet Makers' saw with Heavy Duty Sliding Beam & Squaring Frame - Record Power

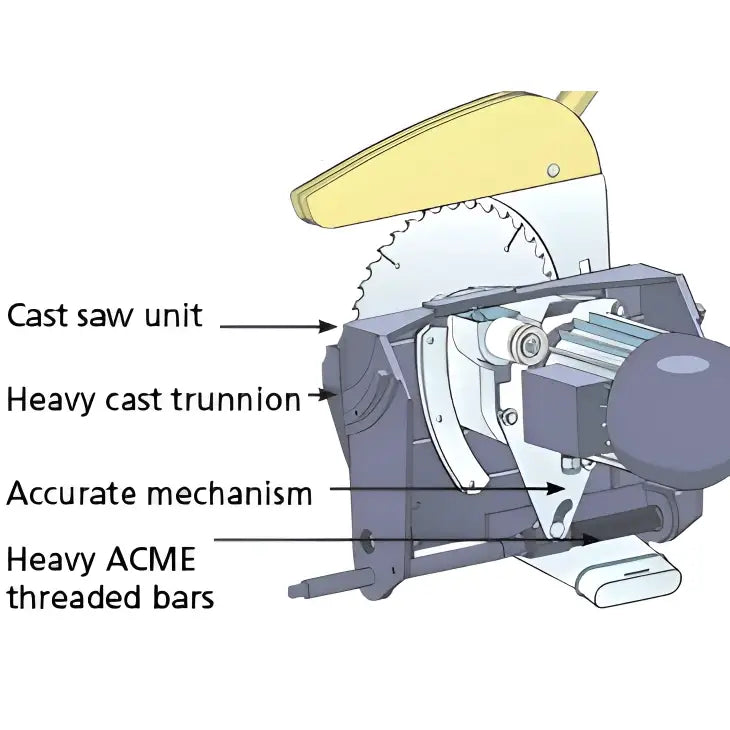

The TS250RS features a cast iron saw unit mounted on two substantial cast iron trunnions, CNC machined for accuracy and smooth operation. The trunnions are mounted on a solidly fabricated steel base to reduce vibration passing through to the table.

The sliding table has been upgraded and with the optional squaring frame offers a professional solution to panel sizing and cross cutting. Both tables are machined for accuracy. Blade tilt and rise are handled smoothly by separate mechanisms operated by a rolled acme thread solid steel lead screw. The rip fence is mounted on a solid steel bar with a heavy cast mount featuring micro adjustment. This machine makes no compromises, offering repeatable accuracy on both panel work and solid timber and offers exceptional value for money. If you are in the market for a good quality, versatile saw then make sure you seek out this machine at a local dealer or show, as it needs to be seen to fully appreciate the value on offer.

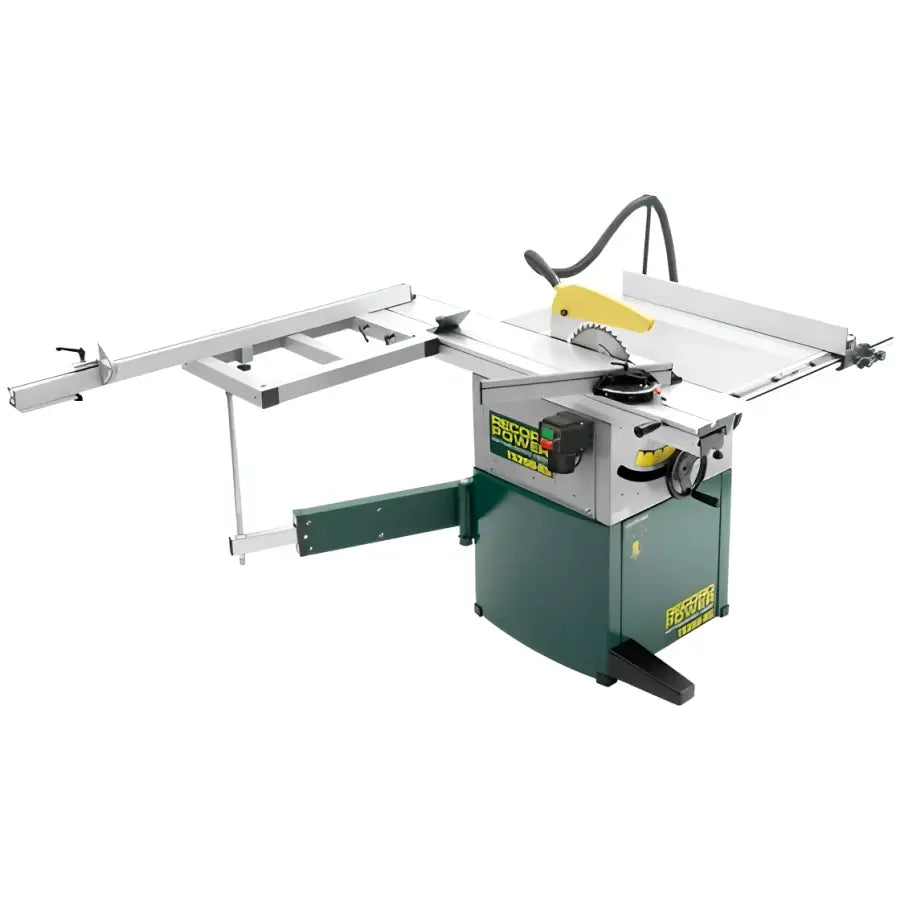

Shown with optional right hand extension.

Optional Squaring Table

The optional squaring table comes with swinging arm support, extendable cross cut rail and flipover stop to easily and accurately handle large sheet materials.

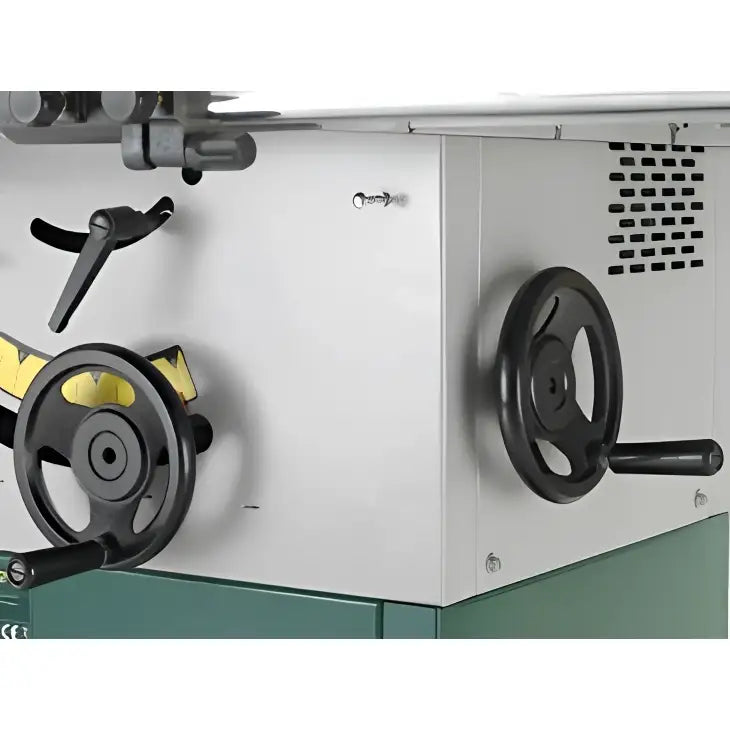

Rise and Fall

Separate rise and fall table tilt handwheels - providing smooth and accurate control via thick steel bars with rolled acme threads for fast smooth action.

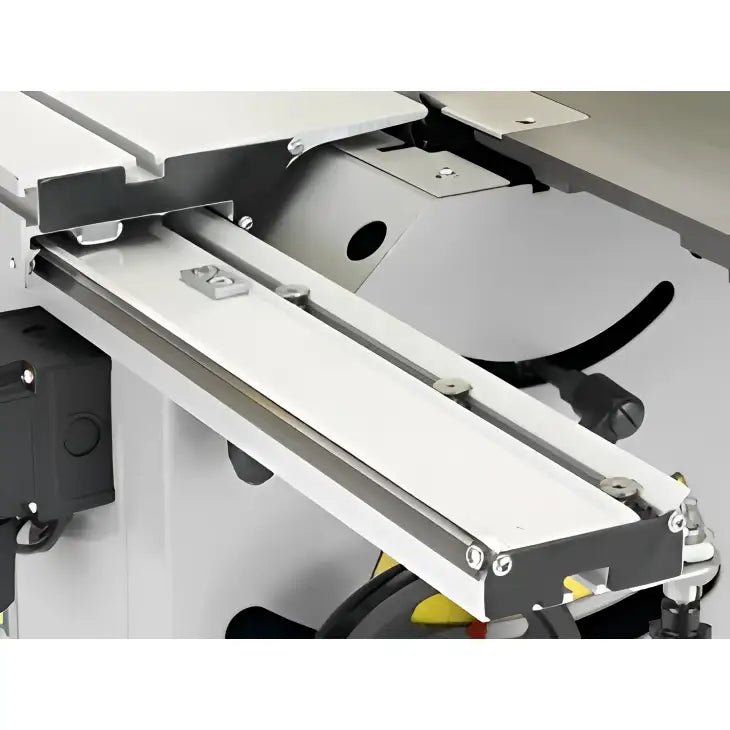

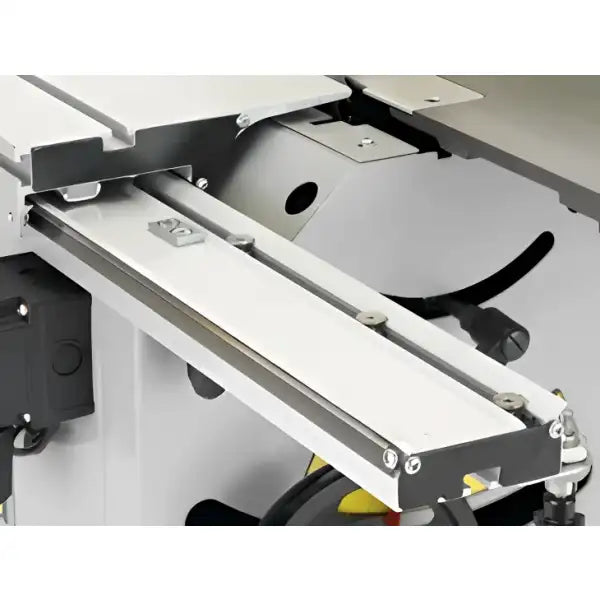

High Quality Sliding Beam

The sliding beam rests on a substantial mount offering smooth and accurate operation. Stroke is generous at 1225mm and can cut 8’ x 4’ sheets across the width.

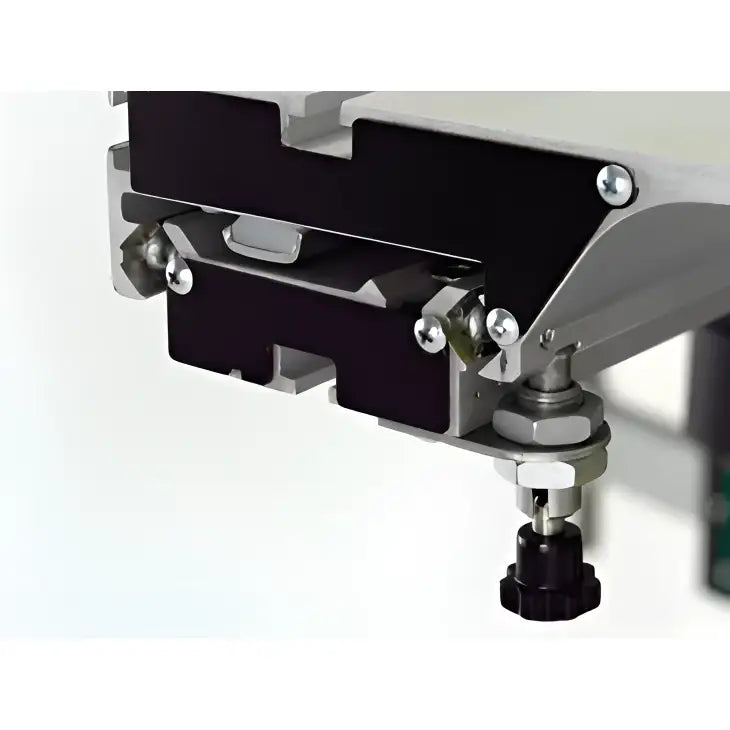

Beam Stop

The Sliding beam features a sturdy stop allowing the beam to be held in position safely when sliding action is not required.

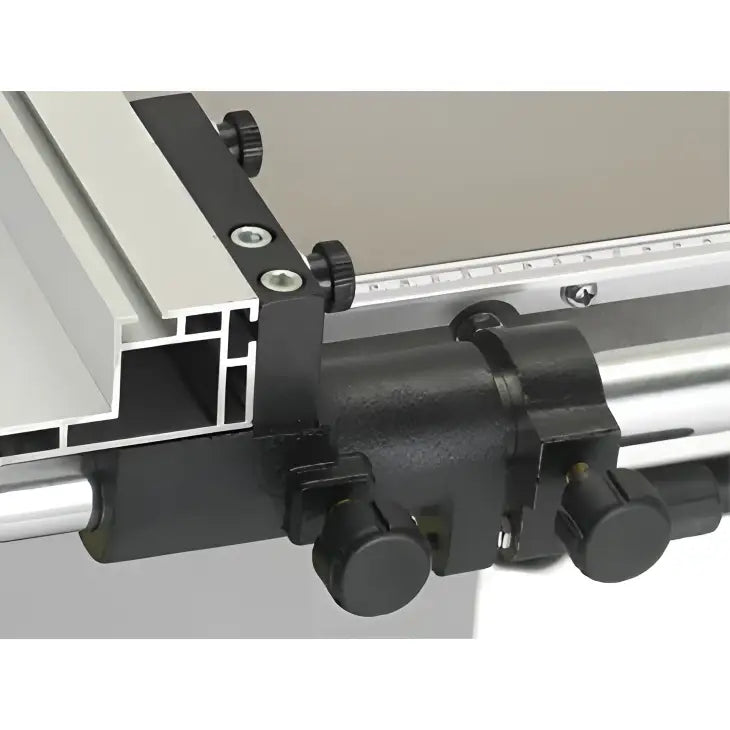

Robust Fence System

The heavy extrusion is fixed to a solid cast iron mount and fitted with micro-adjustment. The whole unit slides smoothly on an industrial style solid steel bar, which has adjustment that will stay put once set.

Size:

Weight (KG):
