Proxxon KGS 80 Mitre Saw
Description
Description

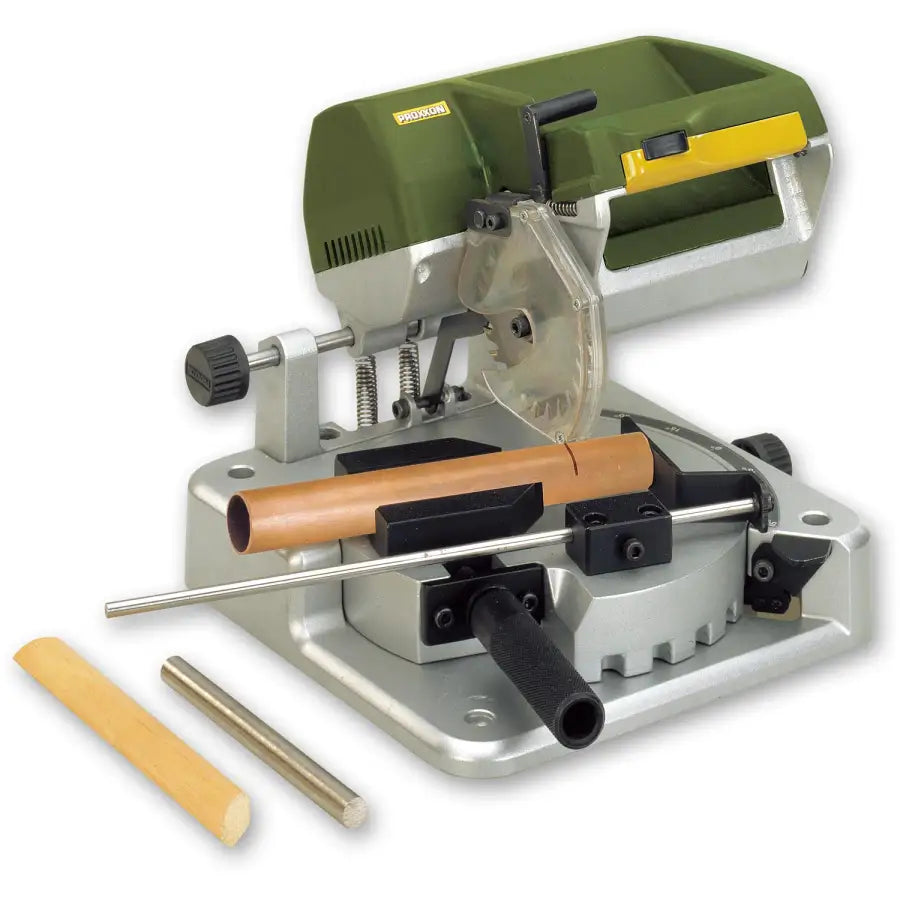

Proxxon KGS 80 Mitre Saw
Ideal for mitre cuts: Adjustments are made to the round table (with clamped work piece) and not to the headstock!
The opposite angle for a second frame part of identical length occurs through simple shifting with the longitudinal stop and by rotating the table by 2 x 45°. Powerful, quiet DC-motor. Smooth toothed belt drive ensures power transmission. Tungsten-tipped saw blade for non-ferrous metal, wood and plastics (80 x 1.6 x 10mm, 36 TPI).
Other technical data: 230V. 200W. 50/60Hz. 6,000rpm. Base with round table of highly stable die-cast aluminium with CNC-milled fittings and slides. Table 230 x 230mm. Weight 6kg. See table for cutting capacity.
- Laterally moving saw head to minimize the distance between the vice holding the workpiece and the kerf. For cutting without vibration and chattering!
- Fence adjustable to 300mm.
- Comfortable grip with built-in switch and saw head release button.
- Round table made of die-cast aluminium, rotates 45° left and right. Positive stops in 15° increments.
- Integrated clamping system with fixed jaws. V-slot for round workpieces. Front side slot allows thin pieces to be clamped.
Cutting capacity at 90° (right angle cut):
| Material size (in mm) |
Max. material width (in mm) |
Round material (in mm) |
| 10 18 21 25 |
65 50 40 25 |
Ø max. 25 |
Cutting capacity at 45° (mitre cut):
| Material size (in mm) |
Max. material width (in mm) |
Round material (in mm) |
| 5 10 15 20 |
36 30 25 18 |
Ø max. 20 |
